Can-Am has raised its game and reinforced its performance leadership in the ATV market with a revised Can-Am Outlander ATV lineup for 2017.
Changes include more value-driven ATVs, the unification and efficient restructuring of the Can-Am Outlander name, updated performance gains, new colors and, of course, new specialty packages like the revised Can-Am XT-P models and the new Outlander Mossy Oak Hunting Edition 1000R ATV.
The Can-Am Outlander family of 4x4 ATVs consists of the Outlander 450, Outlander 570, Outlander 650, Outlander 850 and Outlander 1000R lineups. Can-Am Outlander ATVs are the category leaders in engine performance at every displacement level.
All five Outlander displacement levels are available in a one-up chassis or a longer wheelbase (MAX) two-up platform. Also, all Outlander ATVs are available at different price points with various unique features, different specialized packages and color schemes. Those additional packages are comprised of base models (450, 570, 650), DPS, (all engines), XT (570, 650, 850, 1000R), Mossy Oak Hunting Edition (570/1000R) and XT-P (850/1000R).
Can-Am Outlander ATVs are built around the industry-exclusive chassis and suspension designs and share many of the same specifications, engineering and components aside from their engine displacement levels, chassis lengths and packages-specific features. The Can-Am Outlander 450 ATV is the most affordable Outlander ever in the U.S., with its $5,999 starting price.

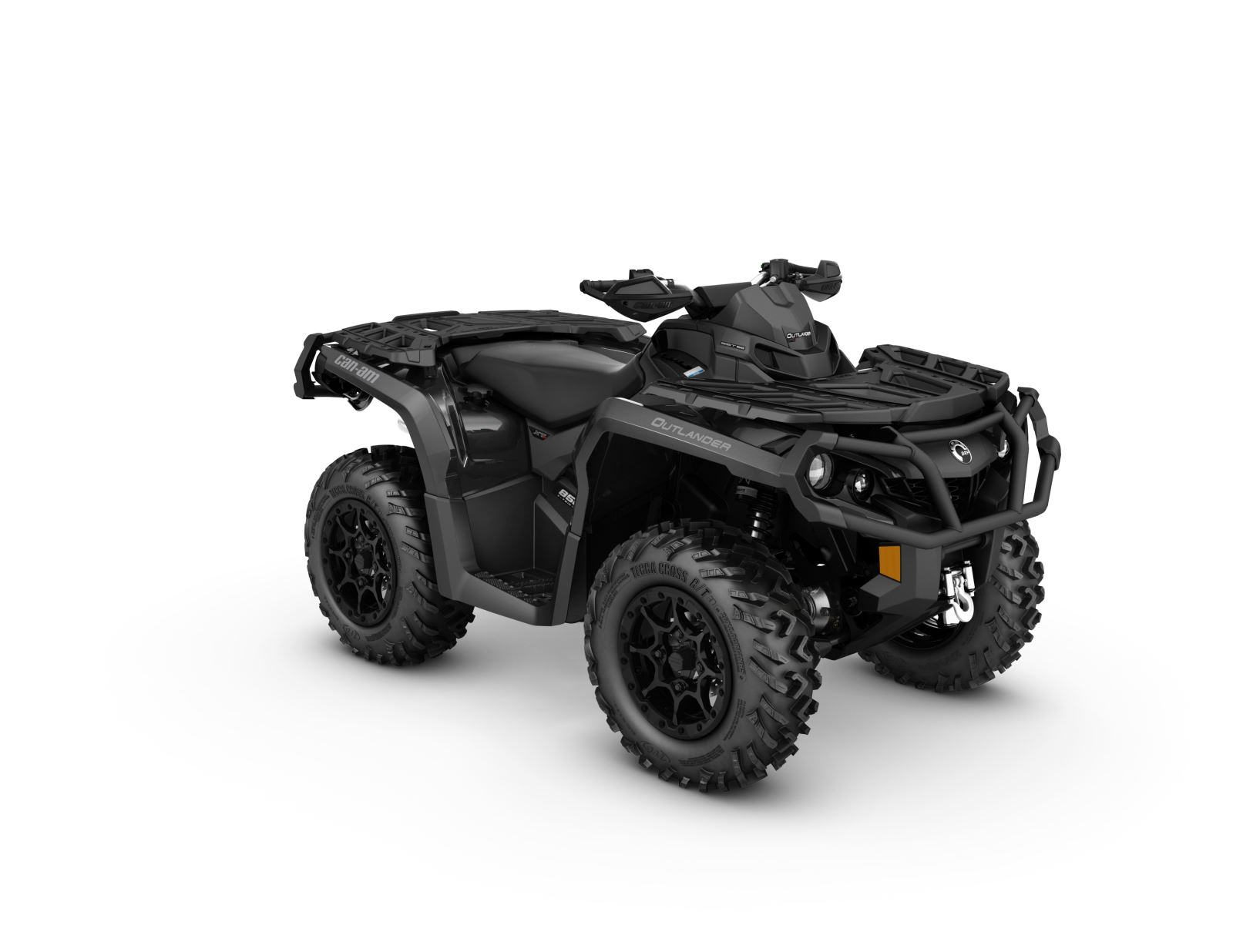

Can-Am Outlander XT-P 1000R/XT-P 850
The sport-oriented, rec-utility Outlander XT-P 1000R and XT-P 850 ATVs expand upon the Outlander XT platform with its own unique features. Along with an all-new painted Triple Black coloration for 2017, these flagship ATVs also sport new Fox 1.5 Podium QS3 piggyback shocks, new 14-inch cast-aluminum wheels with authentic beadlocks and new ITP TerraCross tires and much more.

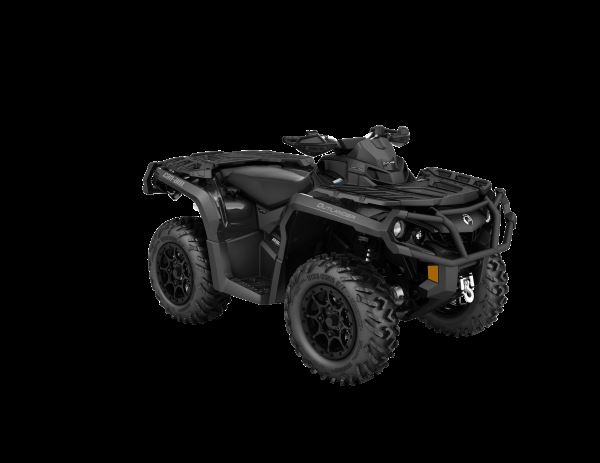

XT-P 850
Performance
2 Rotax V-Twin engine options
The muscular 89-hp, 80 degree F 976cc liquid-cooled 8-valve Rotax V-Twin engine in the Outlander 1000R ATV leads its class in performance.
The Outlander 850 family is powered by a 78-hp, liquid-cooled, 80 degree F 854cc V-Twin engine, which is the most powerful engine in its category.
Continuously Variable Transmission (CVT)
The CVT (Continuously Variable Transmission) means no shifting is required. The system includes standard engine braking with High, Low, Park, Neutral and Reverse gears. A standard L gear ratio adds more comfort for low-speed riding and better traction for pulling heavy loads. The CVT housing has 13 bolts to ensure a proper seal and also includes an integrated drain plug.
Dual-room, no-tools air box
A no-tools air box is placed at a higher and more centralized location for filtering and processing air. A dual-room air filtration design captures dirty air in one portion of the box and clean air in another section before it sends the air to the engine. A higher air intake ensures performance in mud and water.
Large radiators
The large, efficient radiators offer exceptional cooling capacity to keep the Rotax V-Twin engines running cool for optimal performance. The Outlander 1000R has roughly 27 kW of cooling capacity. The 850 and 650 each have very capable 22 kW radiators.
High-grade exhaust and silencer
The Outlander ATVs have a performance-inspired exhaust system, including a durable end cap/cover which produces a throaty and impressive exhaust note, yet adheres to strict dB and emissions standards.
Handling
Fox 1.5 Podium QS3 piggyback shocks
The new Fox 1.5 Podium QS3 (Quick Switch 3) shocks offer simple suspension adjustments for owners and feature a 3-position tool-free adjuster knob to setup the suspension for a smooth and comfortable ride or high-performance handling. The piggyback shocks also enhance the XT-P ATV’s handling and performance in challenging conditions.
Torsional Trailing arm Independent (TTI) rear suspension
With far less moving parts than competitive systems, TTI is designed to eliminate scrub and camber changes when the suspension works up and down and keep the quad in straight line. The rear suspension also has motion-control shocks and offers 9.3 inches of travel. It includes a removable external swaybar and lower pivot points for geometric squatting to improve traction and power transfer.
Double A-arm front suspension with dive-control geometry
The Outlander ATVs use a dependable double A-arm front suspension with nine inches of travel. Dive-control geometry tightly controls the roll-center, especially when entering corners. The setup also inspires confidence, reducing kickback to the operator by locating the knuckle in the wheel.
Surrounding Spar Technology (SST) G2 Frame
The Outlander family of 4x4 ATVs use an industry-exclusive Surrounding Spar Technology (SST) G2 frame from BRP. The welded-steel SST frame offers increased structural integrity and handling with fewer parts.
Tri-Mode Dynamic Power Steering (DPS)
The Tri-Mode DPS system features three modes (MIN, MED and MAX) allowing riders to select the desired amount of steering assist to adjust to the terrain requirements and to his riding style. All modes offer less assist at high speed to keep maximum steering feel to the rider and more assist at low speed to reduce steering effort.
Visco-Lok QE front differential
All DPS-equipped models come with the Visco-Lok QE calibration giving an even quicker engagement of the front differential
14-inch cast-aluminum beadlock wheels
New 14-inch cast-aluminum beadlock wheels with a center-less design offer reduced unsprung weight and improved strength. The black beadlock wheel is a mechanical fastening device that makes it nearly impossible for the tire to break its bead from the wheel during heavy acceleration or cornering.
26-inch ITP TerraCross tires
New traction-happy 26-inch ITP TerraCross tires supply versatile traction in both hardpack and soft terrain.
214 mm disc brakes with twin-piston calipers
Two large 214 mm disc brakes with twin-piston calipers up front and a single twin-piston caliper with 214 mm hydraulic disc brake, located in the right, rear wheel, comprise the Outlander ATV braking system.
Rider-Focused Design
New Radio Frequency (RF) Digitally Encoded Security System (D.E.S.S.)
The new RF D.E.S.S. has been improved and redesigned on all Outlander ATVs. Each ATV includes both a performance key and regular key. This revised setup also aligns with this current proven technology in other BRP brands. Can-Am is the only manufacturer to offer a factory-installed anti-theft device as standard equipment.
Analog/digital gauge package
An analog/digital gauge package includes an analog tachometer and speedometer combined with an advanced digital information center.
625W magneto
The most powerful magneto in the industry can be found on the Outlander XT-P. At 625 watts, it means more amps for running accessories.
3,000-lb. WARN winch
The Outlander XT-P 1000R has a 3,000-pound (1,361 kg) WARN winch with roller fairlead.
Standard skid plate
The high-strength skid plate is made from proven materials and is designed for supreme protection and has the ability to slide over certain obstacles.
Heavy-duty front and rear bumpers
For an edgier and more rugged trim, the XT-P models include heavy-duty front and rear bumpers.
Aluminum handlebars w/square bar pad and race-type grips
The XT-P includes a lower-profile handlebar with square bar pad and racing grips for enhanced performance.
Wind deflectors w/aluminum, full-wrap braces
The wind deflectors wrap around the handlebar ends for an aftermarket-like look that is comfortable and protective.
Enhanced lighting
The Outlander ATV family includes two 60-W reflectors and dual 55-W projectors to give the Outlander up to 230 watts of visual clarity (Hi beams). The Outlander 1000R family features the most lighting output of any ATV in the industry. The taillights offer a stylish design and increased visibility for trail riding.
Stylish design
The Can-Am Outlander 1000R, 850 and 650 ATVs have a muscular façade with a more seamless design, low profile stance and multi-function cargo racks with a special anti-slide surface. Almost no apparent fasteners translate to a cleaner look.
Colors available
The Can-Am Outlander XT-P (1000R/850) ATVs come in an all-new painted Triple Black finish for a unique menacing look.

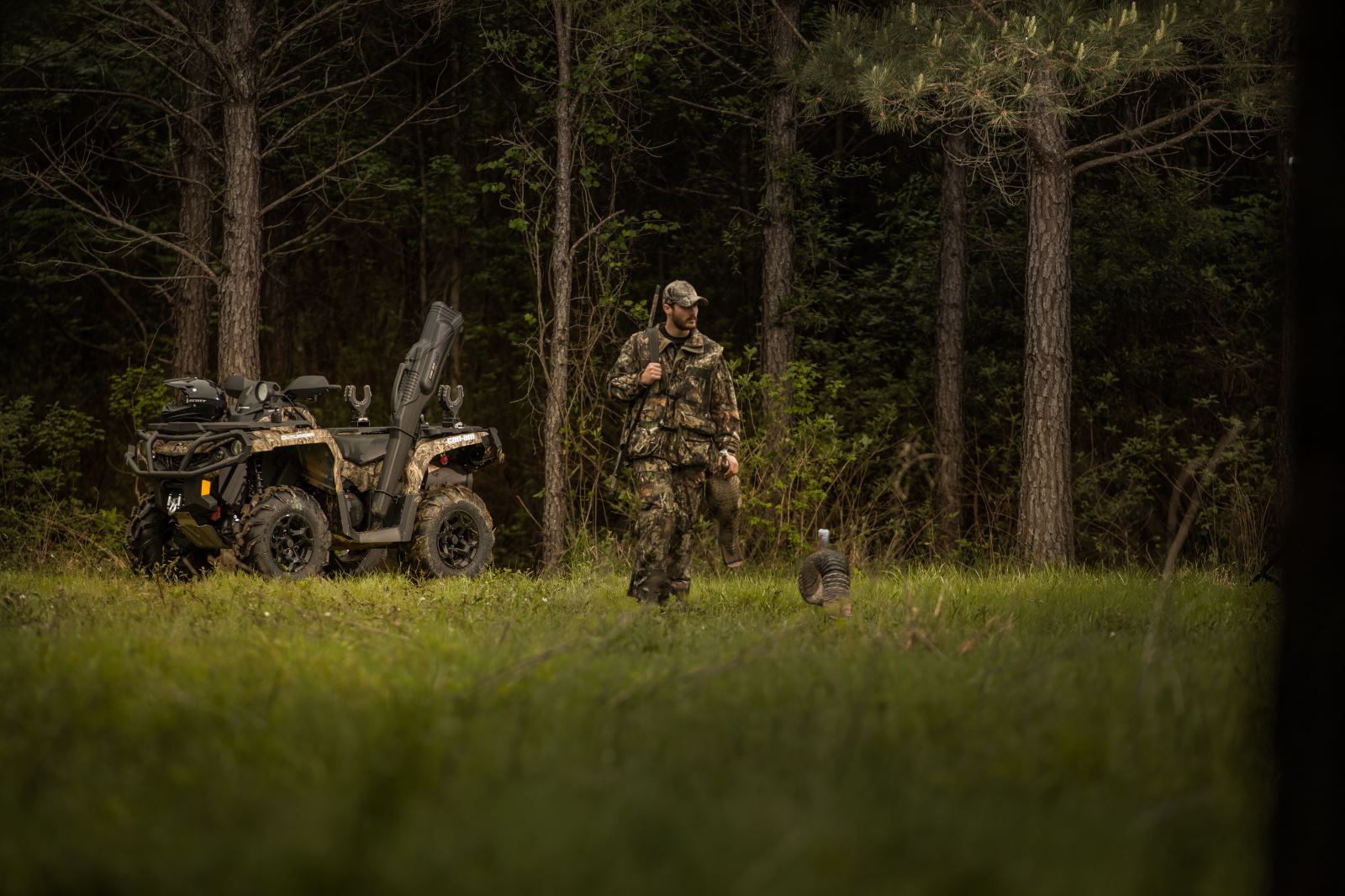

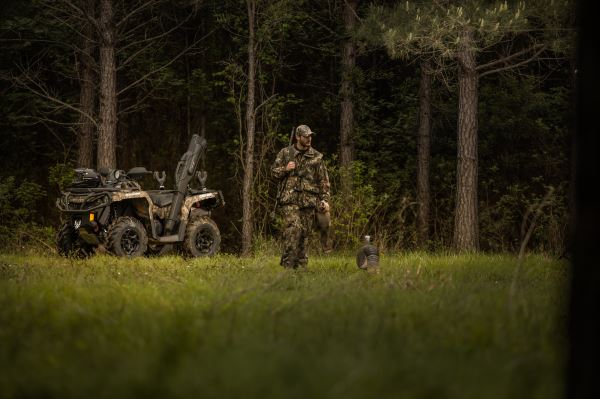

Can-Am Outlander Mossy Oak Hunting Edition 1000R
Factory-equipped for modern hunting enthusiasts, the 2017 Can-Am Outlander Mossy Oak Hunting Edition 1000R features a design and enhancements that were influenced through our cooperation with the camouflage concealment and hunting experts at Mossy Oak, including direct input from the Mossy Oak Pro Staff team.
The segment-leading Can-Am Outlander Mossy Oak Hunting Edition reinforces the Can-Am brand’s leadership in specialized vehicles and makes its family of Mossy Oak-themed hunting vehicles more complete. The ATV starts with the XT package (winch, bumpers, etc.) then expands upon that with its own unique hunting-related conveniences.
.jpg_600.jpg)
Double A-arm front suspension with dive-control geometry and increased preload
The Outlander Mossy Oak Hunting Edition 1000R uses a dependable double A-arm front suspension with 9 inches of travel. The increased suspension preload on the Mossy Oak hunting edition increased ground clearance by one inch and new stiffer springs were added for even better off-road capabilities. Dive-control geometry tightly controls the roll-center, especially when entering corners. The setup also inspires confidence, reducing kickback to the operator by locating the knuckle in the wheel.
26-inch (66 cm) Carlisle ACT Radial tires
Durable 6-ply, 26-inch Carlisle ACT Radial tires provides versatile traction, a smooth ride and great shock absorption and durability for trail use.
Kolpin 6.0 Impact gun boot with rack
The Outlander Mossy Oak Hunting Edition comes standard with a 6.0 Impact gun boot by Kolpin that attaches to an integrated mounting holder. The gun boot includes removable, shock absorbing foam and nylon Impact liner for superior interior protection. It also features a lockable hatchback design, snap-close cover and integrated handle.
Kolpin Gear grips
Two LinQ-system-compatible, Can-Am-labeled Kolpin Gear Grips add a versatility to the package, with the ability to carry tools or other hunting-related items. Make transporting your tools a snap by combining the Gear Grips with the LinQ System. The durable, flexible grips cushion and protect while providing a custom fit for a variety of items from one-to-four inches in diameter. They have a heavy-duty design for carrying bows, fishing poles, rakes, farm tools and more. A quick-release button opens the grip quickly for easy access to gear.
Full aluminum skid plate
A lightweight, durable aluminum skid plates ensures the underside (foot wells, center and front) of the Outlander ATV is protected from destructive rocks, stumps and other hidden obstacles.
LED RAM spotlight
A high-intensity (37.5-W), heavy-duty spotlight includes a 1-inch diameter rubber-coated double ball and socket system. It’s LinQ compatible and plugs into the lighter-type DC outlet in the center of the Outlander ATV.
New Radio Frequency (RF) Digitally Encoded Security System (D.E.S.S.)
The new RF D.E.S.S. has been improved and redesigned on all Outlander ATVs. Each ATV includes both a performance key and regular key. This revised setup also aligns with this current proven technology in other BRP brands. Can-Am is the only manufacturer to offer a factory-installed anti-theft device as standard equipment.
Mossy Oak Break-Up Country Camo
When it comes to concealment, nothing compares to the exclusive and innovative Mossy Oak Break-Up Country Camo. The highly durable water-dipped camo finish is more resistant to scratching, mineral deposits and sun fading. More importantly, it lets hunters match their favorite camo manufacturer with their favorite ATV brand.

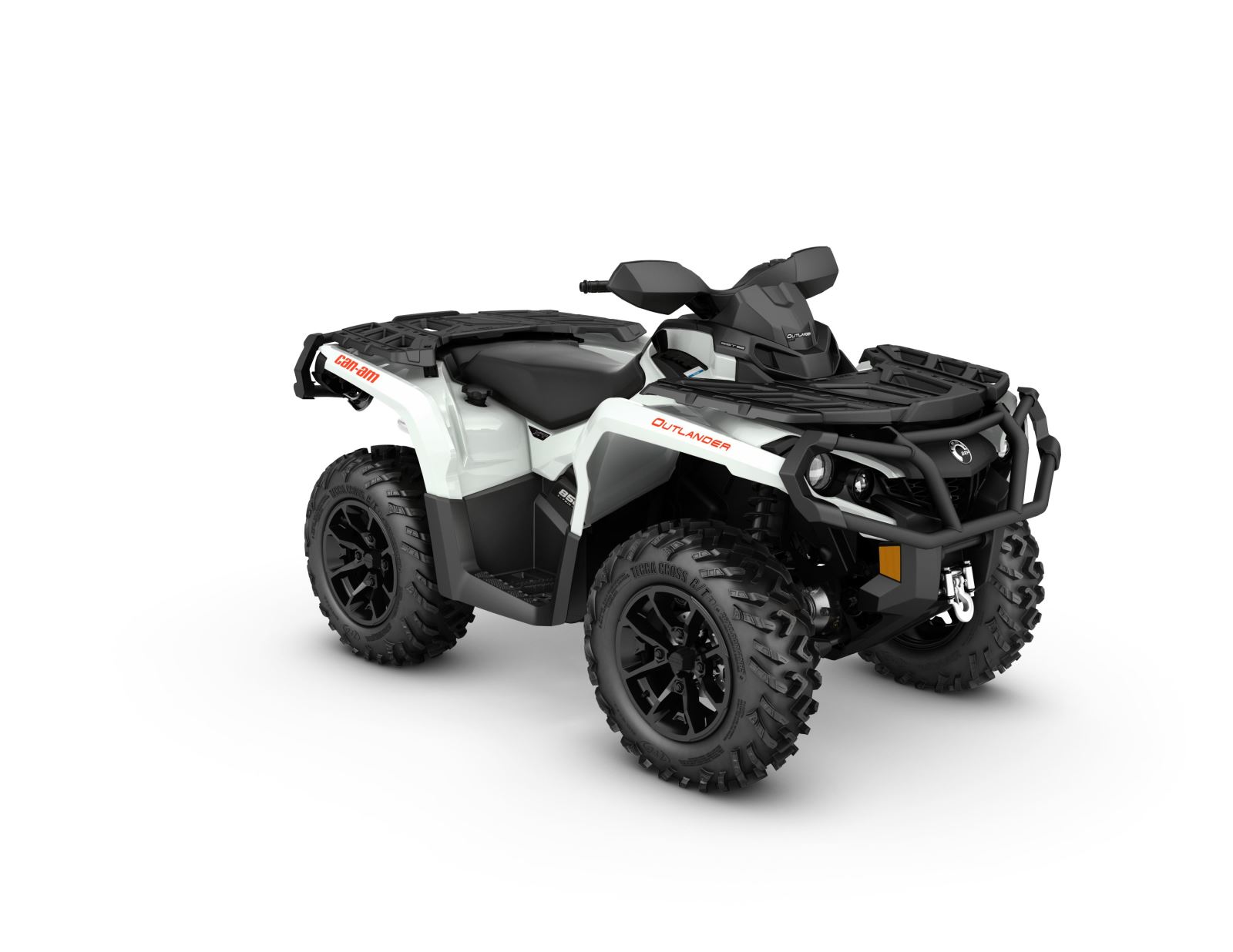

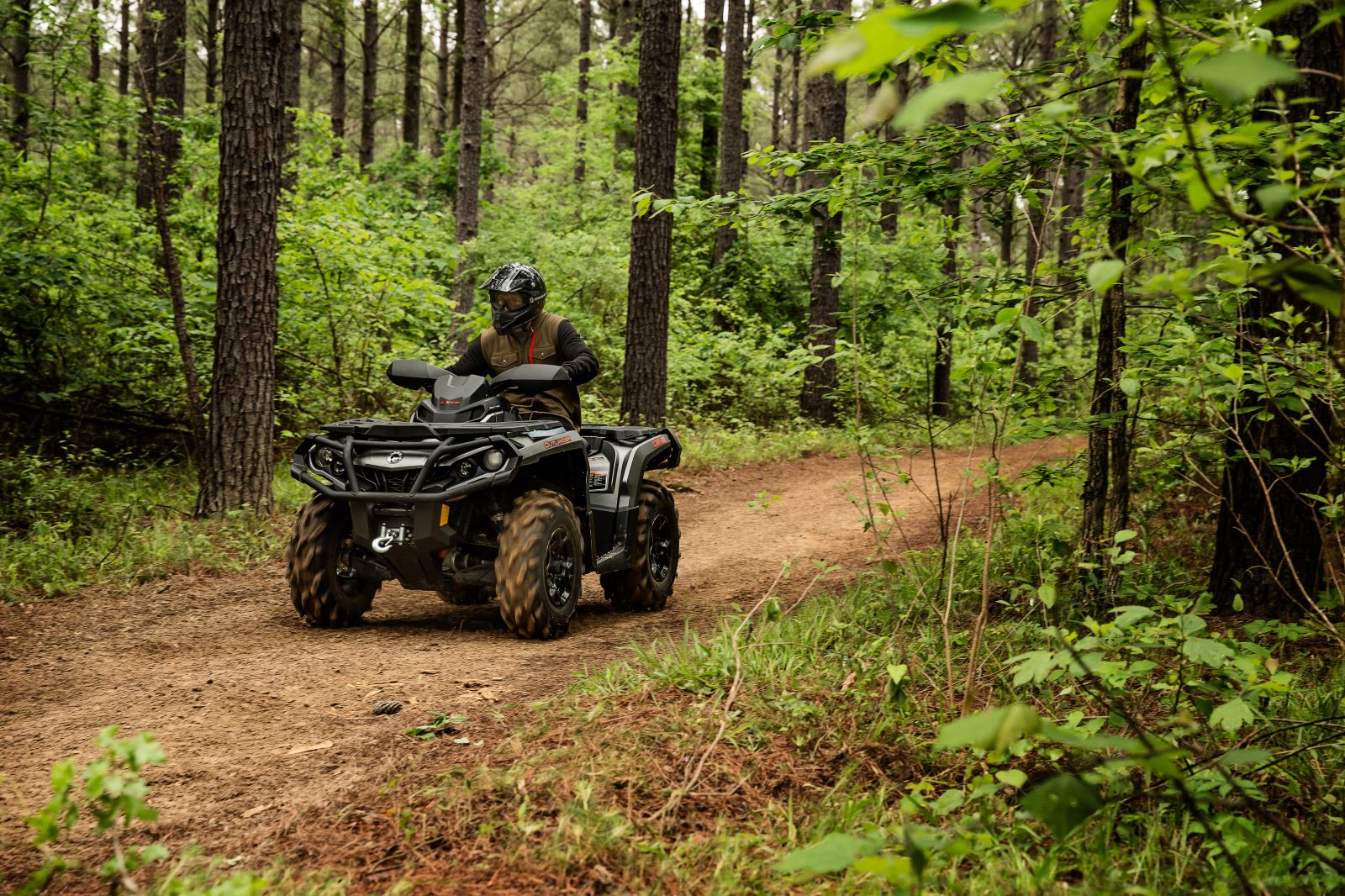

Can-Am Outlander XT 1000R/XT 850/XT 650
The Can-Am Outlander XT family includes many value-added, performance-enhancing parts that offer a functional purpose, benefits to the rider and an improved appearance.
New tires and wheels, as well as a revised D.E.S.S. key design, highlight the Can-Am XT package updates for 2017. Three colors are available this year, including a new painted White and Black finish and the industry-exclusive Mossy Oak Break-Up Country camo.
XT 850
Tri-Mode Dynamic Power Steering (DPS)
The Tri-Mode DPS system features three modes (MIN, MED and MAX) allowing riders to select the desired amount of steering assist to adjust to the terrain requirements and to his riding style. All modes offer less assist at high speed to keep maximum steering feel to the rider and more assist at low speed to reduce steering effort.
Visco-Lok QE front differential
All DPS-equipped models come with the Visco-Lok QE calibration giving an even quicker engagement of the front differential.
New 14-inch cast-aluminum wheels
Fourteen-inch cast-aluminum wheels with a unique design are new for 2017. The cast-aluminum 8-spoke wheels on the XT models have a unique, custom-like finish compared to the standard model and an ultra strong center-less design. The XT models will include an all-black wheel.
New 26-inch ITP TerraCross tires
New 26-inch ITP TerraCross tires supply versatile traction in both hardpack and softer terrain.
3,000-lb. WARN winch
WARN is a highly respected name in the off-road industry. The Outlander XT has a 3,000-pound winch with roller fairlead.
Heavy-duty front and rear bumpers
For an edgier and more rugged trim, the XT models include heavy-duty front and rear bumpers.
Handlebar wind deflectors
Wind deflectors provide improved protection from brush and cold weather and also offer a distinguished look.
625W magneto
The most powerful magneto in the industry can be found on the Outlander XT. At 625 watts, it means more amps for running accessories.
New Radio Frequency (RF) Digitally Encoded Security System (D.E.S.S.)
The new RF D.E.S.S. has been improved and redesigned on all Outlander ATVs. Each ATV includes both a performance key and regular key. This revised setup also aligns with this current proven technology in other BRP brands. Can-Am is the only manufacturer to offer a factory-installed anti-theft device as standard equipment.
Colors available
The Outlander XT 1000R, 850 and 650 are offered in painted White and Black, water-dipped Brushed Aluminum and the industry-exclusive Mossy Oak Break-Up Country Camo finish.

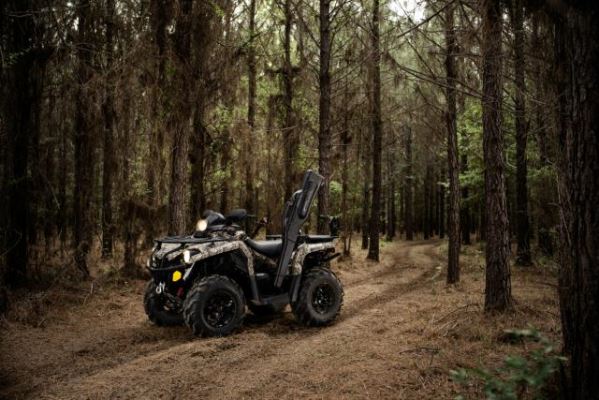

Can-Am Outlander Mossy Oak Hunting Edition 570
The 2017 Can-Am Outlander Mossy Oak Hunting Edition 570 package features a budget-friendly price as well as class-leading performance and enhancements to improve a hunter’s day in the field. This ATV was designed in cooperation with the camouflage concealment and hunting expert Mossy Oak, including direct input from its Mossy Oak Pro Staff team.
The Can-Am Outlander Mossy Oak Hunting Edition 570 reinforces the Can-Am brand’s leadership in specialized vehicles and makes its family of Mossy Oak-themed hunting vehicles more complete. The ATV starts with the XT 570 package and then expands upon that with its own unique hunting-related conveniences.
WARN winch
The package features a 3,000-pound WARN winch with roller fairlead and fully sealed motor. The rugged, dependable winch can haul out big game and get hunters out of a pickle if needed.
6-ply tires and 12-inch aluminum wheels
The 26-inch Carlisle ACT HD (heavy-duty) tires offer a six-ply rating, giving the Outlander Mossy Oak Hunting Edition excellent durability and dependable traction in rugged terrain. They’re fitted to 12-inch black aluminum wheels to complete the stealth look.
Increased preload
The suspension preload was increased on the Mossy Oak Hunting Edition, so ground clearance was increased by one inch for even better off-road capabilities.
Kolpin 6.0 Impact gun boot with rack
The Outlander Mossy Oak Hunting Edition comes standard with a 6.0 Impact gun boot by Kolpin that attaches to an integrated mounting holder. The gun boot includes removable, shock absorbing foam and nylon Impact liner for superior interior protection. It also features a lockable hatchback design, snap-close cover and integrated handle.
Skid plate
A lightweight, durable aluminum skid plates ensures the underside (footwells, center and front) of the Outlander ATV is protected from destructive rocks, stumps and other hidden obstacles.
Heavy-duty front-and-rear bumpers
For an edgier and more rugged trim, the Outlander Mossy Oak Hunting Edition ATV wears heavy-duty front and rear bumpers.
LED RAM spotlight
A black, LED RAM Spotlight comes standard on the Mossy Oak version. The 37.5-W light offers high-intensity, a 1-inch diameter rubber-coated double ball and socket system and works with a DC outlet on the vehicle.
Handlebar wind deflectors
Wind deflectors provide improved protection from brush and cold weather and also offer a distinguished look.
Kolpin gear grips
The LinQ-mounted Gear Grips by Kolpin are durable, flexible and designed to act as an extra set of hands. The grips cushion and protect items from damage, while also offering an adjustable setup (one to four inches) for carrying various sized items like bows, fishing poles, axes and more. They also feature 360-degree orientation, a quick-release button and a heavy-duty base.
Mossy Oak Break-Up Country Camo
When it comes to concealment, nothing compares to the exclusive and innovative Mossy Oak Break-Up Country Camo. The highly durable water-dipped camo finish is more resistant to scratching, mineral deposits and sun fading. More importantly, it lets hunters match their favorite camo manufacturer with their favorite ATV brand.

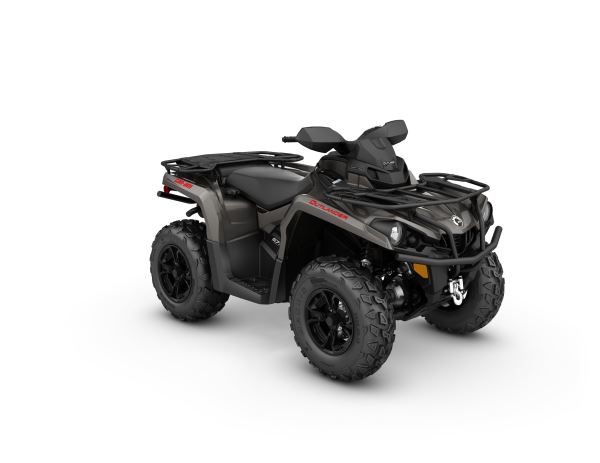

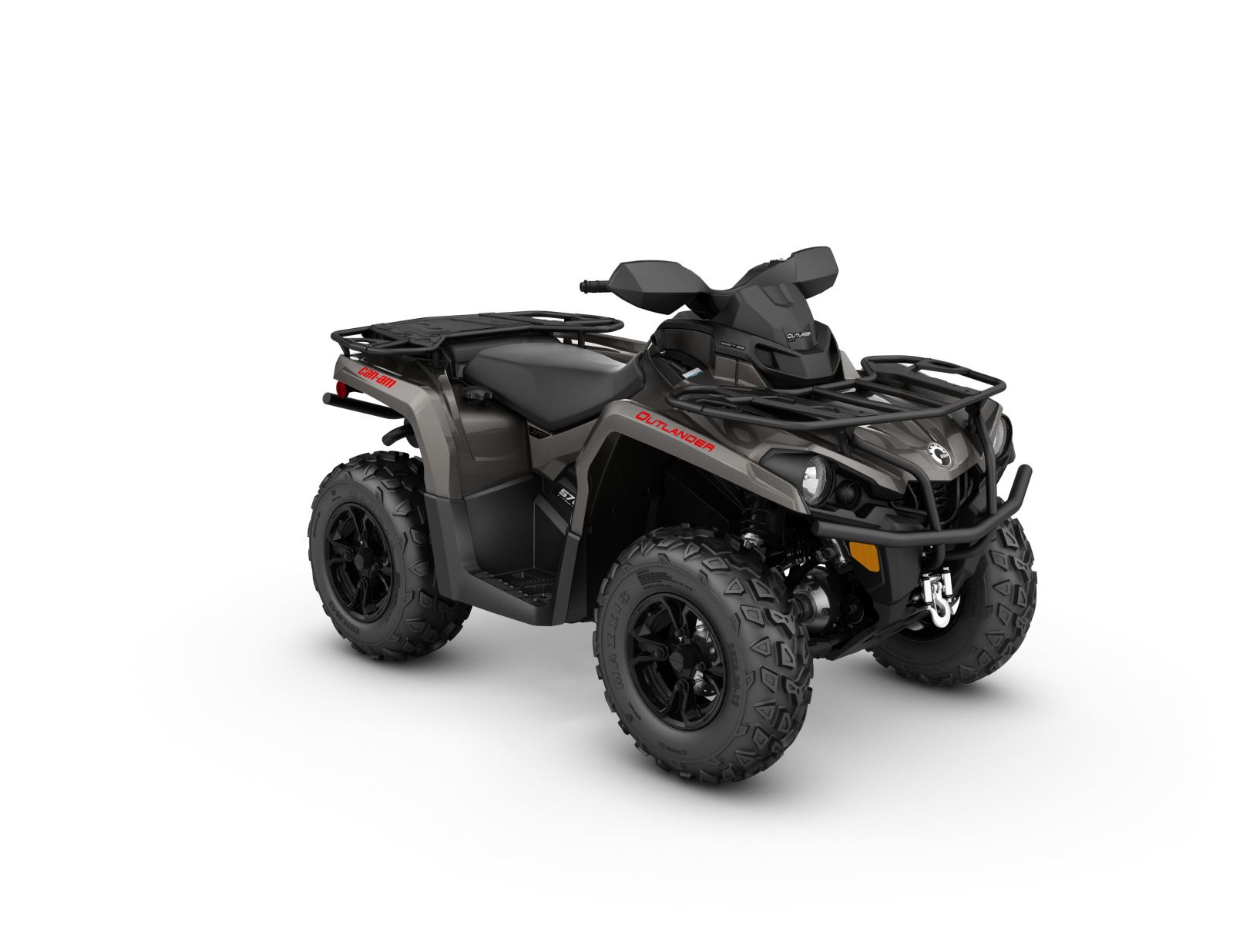

Can-Am Outlander XT 570
The new Can-Am Outlander XT 570 is the most equipped mid-size ATV in the market. Along with great value, they also include highly popular XT package features for 2017. The XT package for this Can-Am ATV includes a Warn winch, front and rear bumpers, optional premium painted plastics and more.
25-inch Maxxis tires
Durable and comfortable 25-inch Maxxis tires are used on black 12-inch aluminum center-less wheels to provide ample traction and a buttoned-up, low-glare look for riders.
3,000-lb. WARN winch
WARN is a highly respected name in the off-road industry. The Outlander XT has a 3,000-pound winch with roller fairlead.
Heavy-duty front-and-rear bumpers
For an edgier look and more protection, the Outlander XT 570 wears heavy-duty front and rear bumpers. Handlebar wind deflectors Wind deflectors provide improved protection from brush and cold weather and also offer a distinguished look.
Colors available
The Outlander XT 570 ATV is available in either the painted Pure Magnesium plastic or Yellow.

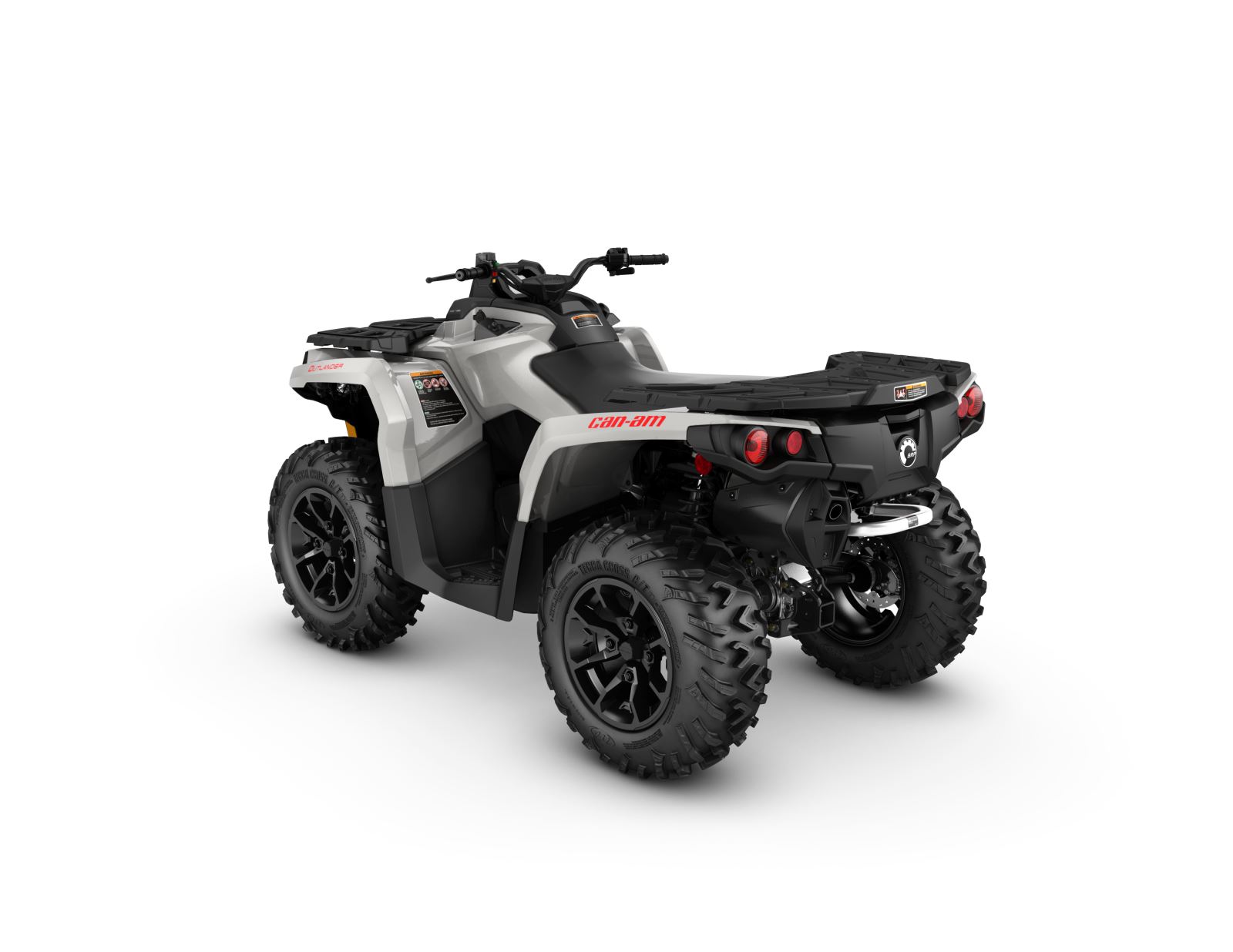

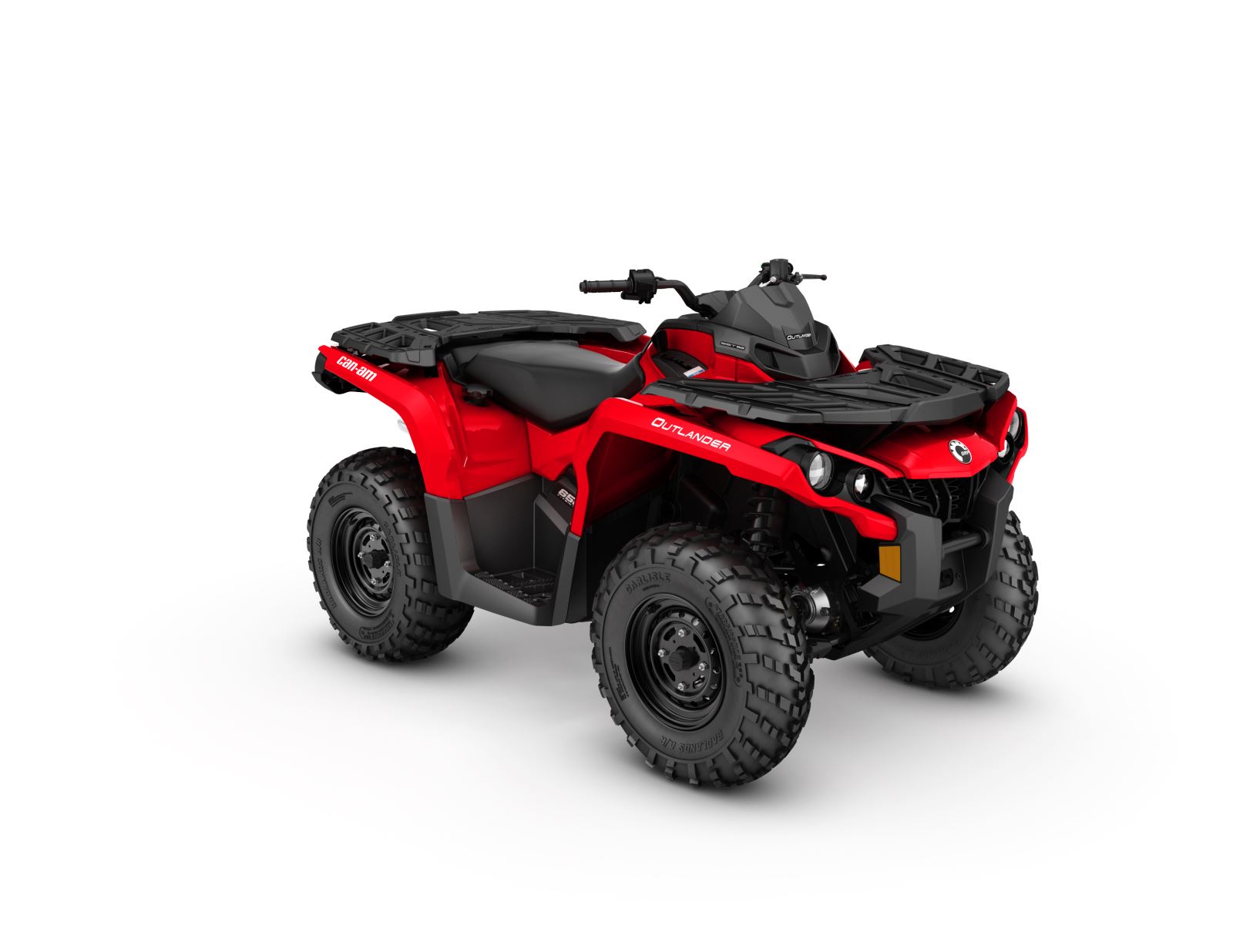

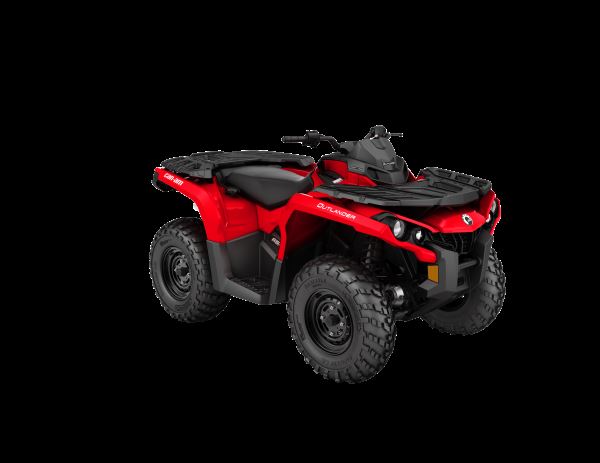

Can-Am Outlander DPS 1000R/DPS 850/DPS 650
For riders who don’t need all the additional features from the XT package, the DPS models include TriMode Dynamic power steering with the Visco-Lok QE front differential, new custom 14-inch cast-aluminum wheels with all-new ITP TerraCross tires and three segment leading engine choices.
DPS 1000R
Performance
3 Rotax V-Twin engine options
The muscular 89-hp, 80 degrees F 976cc liquid-cooled 8-valve Rotax V-Twin engine in the Outlander 1000R ATV leads its class in performance.
The Outlander 850 family is powered by a 78-hp, liquid-cooled, 80 degree F 854cc V-Twin engine, which is the most powerful engine in its category.
Designed to compete and beat 700-class competitive ATVs, the Outlander 650 ATVs rules its class thanks to its hearty 650cc liquid-cooled Rotax V-Twin power plant that produces 62 horsepower.
Continuously Variable Transmission (CVT)
The CVT (Continuously Variable Transmission) means no shifting is required. The system includes standard engine braking with High, Low, Park, Neutral and Reverse gears. An L gear ratio adds more comfort for low-speed riding and better traction for pulling heavy loads. The CVT housing has 13 bolts to ensure a proper seal and also includes an integrated drain plug.
Dual-room, no-tools air box
A no-tools air box is placed at a higher and more centralized location for filtering and processing air. A dual-room air filtration design captures dirty air in one portion of the box and clean air in another section before it sends the air to the engine. A higher air intake ensures performance in mud and water.
Large radiators
The large, efficient radiators offer exceptional cooling capacity to keep the Rotax V-Twin engines running cool for optimal performance. The Outlander 1000R has roughly 27 kW of cooling capacity. The 850 and 650 ATVs each have very capable 22 kW radiators.
High-grade exhaust and silencer
The Outlander ATVs have a performance-inspired exhaust system, including a durable end cap/cover which produces a throaty and impressive exhaust note, yet adheres to strict dB and emissions standards.
Handling
Surrounding Spar Technology (SST) G2 Frame
The Outlander family of 4x4 ATVs use an industry-exclusive Surrounding Spar Technology (SST) G2 frame from BRP. The welded-steel SST frame offers increased structural integrity and handling with fewer parts.
Torsional Trailing arm Independent (TTI) rear suspension
With far less moving parts than competitive systems, TTI is designed to eliminate scrub and camber changes when the suspension works up and down and keep the quad in straight line. The rear suspension also has motion-control shocks and offers 9.3 inches of travel. It includes a removable external swaybar and lower pivot points for geometric squatting to improve traction and power transfer.
Double A-arm front suspension with dive-control geometry
The Outlander ATVs use a dependable double A-arm front suspension with 9 inches of travel. Dive-control geometry tightly controls the roll-center, especially when entering corners. The setup also inspires confidence, reducing kickback to the operator by locating the knuckle in the wheel.
Tri-Mode Dynamic Power Steering (DPS)
The Tri-Mode DPS system features three modes (MIN, MED and MAX) allowing riders to select the desired amount of steering assist to adjust to the terrain requirements and to his riding style. All modes offer less assist at high speed to keep maximum steering feel to the rider and more assist at low speed to reduce steering effort.
Visco-Lok QE front differential
All DPS-equipped models come with the Visco-Lok QE calibration giving an even quicker engagement of the front differential.
New 14-inch cast-aluminum wheels
Fourteen-inch cast-aluminum wheels with a unique design are new for 2017. The cast-aluminum 8-spoke wheels on the DPS models have a unique, custom-like finish compared to the standard model and a ultra strong center-less design. The DPS models include an all-black wheel.
New 26-inch ITP TerraCross tires
New durable 26-inch ITP TerraCross tires supply versatile traction in both hardpack and softer terrain.
214 mm disc brakes with twin-piston calipers
Two large 214 mm disc brakes with twin-piston calipers up front and a single twin-piston caliper with 214 mm hydraulic disc brake, located in the right, rear wheel, comprise the Outlander ATV braking system.
Rider-Focused Design
One-year maintenance break-in
With zero break-in maintenance required and a yearly maintenance schedule, the Outlander ATVs reduce total maintenance costs to the buyer. The yearly advised maintenance is 932 miles.
Easy-to-use maintenance center
Easily accessible and out of the elements under the seat, a centralized maintenance area offers easier access and improved protection. The rear brake fluid reservoir, solenoid starter, battery and relays are also conveniently located under the seat.
High-strength multi-function racks with LinQ quick-attach accessory system
High-strength, reinforced composite racks feature an integrated anti-skid surface and elevated ridges for improved cargo holding. Predetermined “cutouts” were also added for use with the exclusive Can-Am LinQ quick-attach accessory system, which is adaptable and customizable for various uses and products. The racks have a combined rack capacity of 300 pounds (100 front/200 rear).
Water-resistant rear storage box
A huge 5.7-gallon rear storage box offers exceptional cargo capacity and is located beneath the rear cargo rack. The more-convenient location means riders can access the water-resistant, sealed storage box even when the rear cargo rack is loaded.
Radio Frequency (RF) Digitally Encoded Security System (D.E.S.S.)
The new RF D.E.S.S. has been improved and redesigned on all Outlander ATVs. Each ATV includes both a performance key and regular key. This revised setup also aligns with this current proven technology in other BRP brands. Can-Am is the only manufacturer to offer a factory-installed anti-theft device as standard equipment.
Enhanced lighting
The Outlander ATV family includes two 60W reflectors and dual 55W projectors to give the Outlander up to 230 watts of visual clarity (Hi beams). The Outlander 1000R family features the most lighting output of any ATV in the industry. The taillights offer a stylish design and increased visibility for trail riding.
1,300-lb. towing capacity
The Outlander offers an impressive, 1,300-pound towing capacity and a standard 2-inch receiver hitch.
Large 5.4-Gal. (20.5 L) fuel tank
The fuel tank is rated to hold 5.4 gallons (20.5 L) of fuel.
Multi-function digital gauge
The LCD display includes a speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip and hour meters. A diagnostic center, gear position, engine hour meter, 4x4 indicator, temperature light, engine light, fuel gauge, clock are also part of the standard package.
Standard skid plate
The high-strength skid plate is made from proven materials and is designed for supreme protection and has the ability to slide over certain obstacles.
Customization ready
The Outlander ATVs are customization ready, offering a full line of Can-Am performance accessories and come pre-wired for a winch.
Stylish design
With a delicate balance of aggression and sophistication, the flagship 2017 Outlander 1000R uses progressive styling that drives the Can-Am brand DNA. Its muscular façade includes a more seamless makeup and low profile, multi-function cargo racks with a special anti-slide surface. Almost no apparent fasteners translate to a cleaner look.
Colors available
The Can-Am Outlander DPS (1000R/850/650) ATVs come in Light Grey.

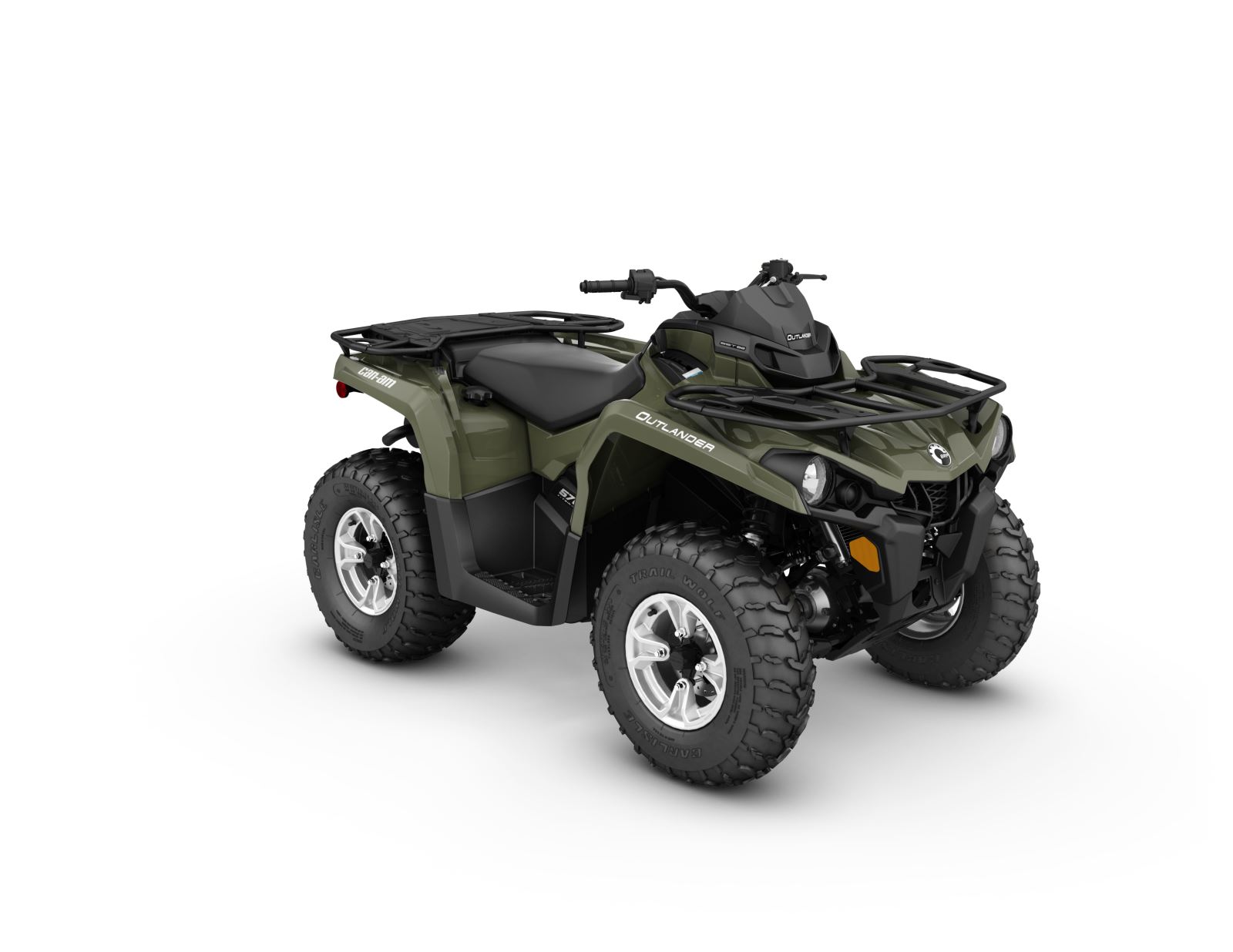

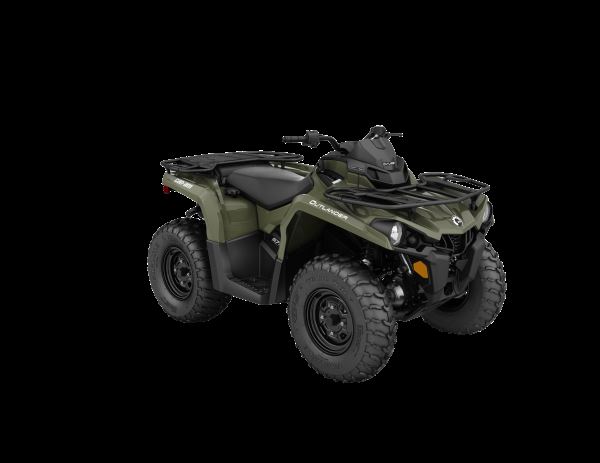

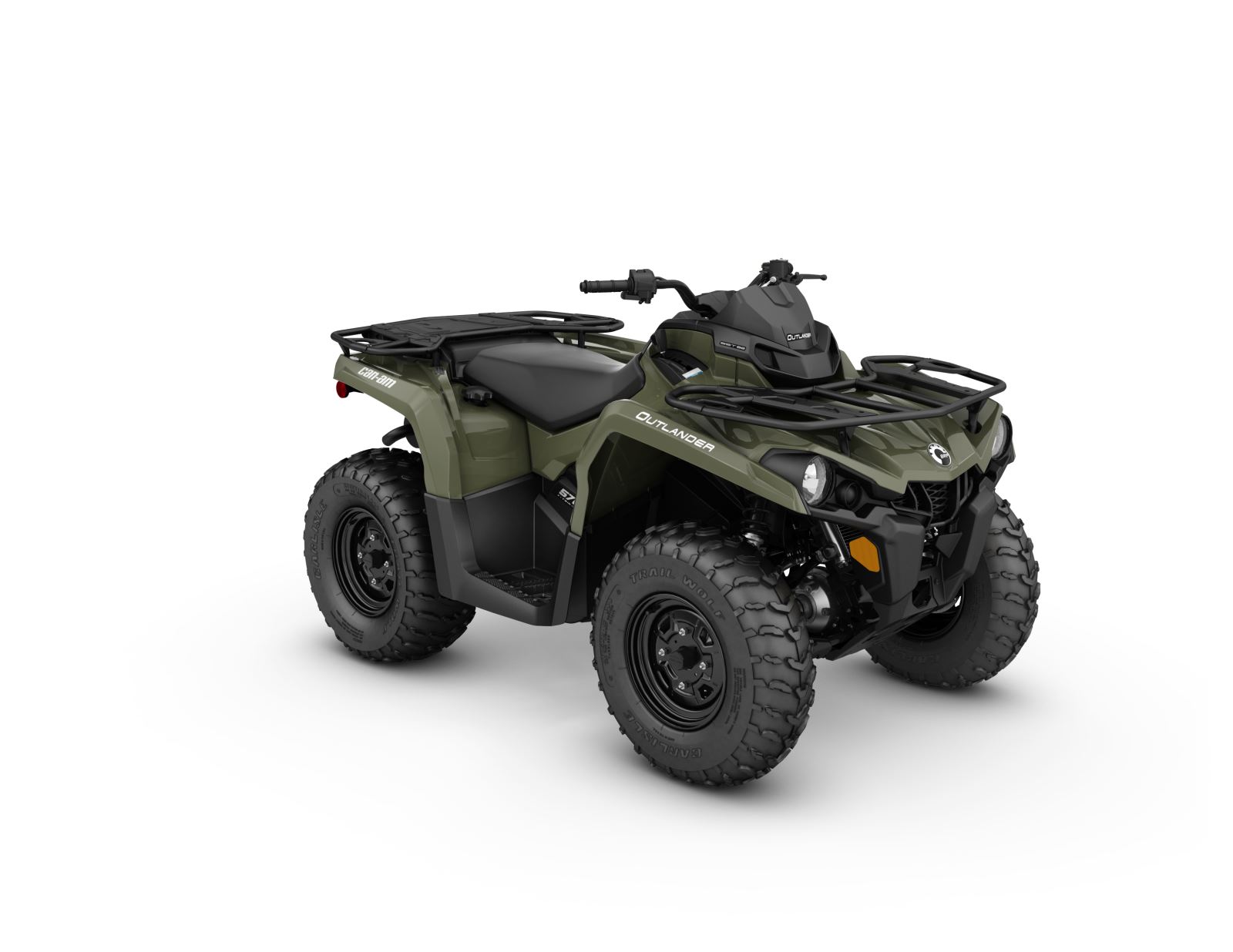

Can-Am Outlander DPS 570/DPS 450
The Can-Am Outlander DPS 570 and 450 packages, complete with segment-leading performance, provide some enhancements over the base Outlander models, including Dynamic Power Steering, a Visco-Lok QE front differential, cast-aluminum wheels, larger magneto and additional colors. They differ from their larger bore siblings in the family in that they have steel racks and less onboard storage as well as different wheels and tires.
DPS 570
Tri-Mode Dynamic Power Steering (DPS)
The Tri-Mode DPS system features three modes (MIN, MED and MAX) allowing riders to select the desired amount of steering assist to adjust to the terrain requirements and to his riding style. All modes offer less assist at high speed to keep maximum steering feel to the rider and more assist at low speed to reduce steering effort.
Visco-Lok QE front differential
The Can-Am Visco-Lok QE system is one of the most consumer-friendly designs on the market, as the progressively and automatically locking front differential system requires no additional buttons to push or levers to hold. Once 4x4 is selected, the system intelligently transfers power from the slipping front wheel to the opposing wheel with traction and is not hampered by speed or rev limiters. The QE version progressively transfers the power even quicker.
12-inch, cast-aluminum wheels with center-less design
Center-less 12-inch cast-aluminum wheels offer a stylish, unique look and reduced weight but improved strength in strategic areas. They are adorned with 25-inch Carlisle Trail Wolf tires.
Steel racks with LinQ quick-attach accessory system
The Outlander ATVs have front and rear steel racks. Due to its slightly shorter stance and steel racks, the Outlander vehicles offer the rider improved sight lines while driving without a front loaded rack. The integrated LinQ quick-attach accessory system offers convenient and adaptable cargo hauling capabilities and works with numerous Can-Am rack accessories.
360-lb. combined rack capacity
The Outlander ATVs are made to work, with 360-pound combined rack capacity. They can tote up to 120 pounds up front and another 240 pounds on the rear rack.
2.9-gallon water-resistant rear storage compartment
The Outlander ATVs have a convenient, 2.9-gallon water-resistant rear storage compartment located on the rear rack.
500W Magneto
This package provides a more powerful magneto with a 500W power output. It also provides extra output to power accessories like added lights or heated grips.
Multi-function digital gauge
The easy-to-read multi-function gauge is equipped with a digital information center, including a speedometer, tachometer, odometer, trip meter, gear position, hour meter, engine hour meter, temperature and engine lights, fuel gauge and clock.
70W lighting
Equipped with dual 35W front headlights, with selectable high and low beams, for superb visual clarity.
Large 5.4-gallon fuel tank
Ride longer and get the job done with the large-capacity fuel tank.
Colors available
Choose from the Green, Yellow and the industry-exclusive Mossy Oak Break-up Country Camo.
Can-Am Outlander 650
The standard Outlander ATVs are designed with same class-leading power, reliability, precision handling and comfort, but do not have as many innovative and convenient features included in either the DPS or XT packages. The significant difference is reduced price compared to other packages, 12-inch black steel wheels, colors and, of course, no Dynamic power steering.
12-inch steel wheels
Can-Am designers equipped the base Outlander 650 with 12-inch painted black steel wheels.
High-strength multi-function racks with LinQ quick-attach accessory system
High-strength, reinforced composite racks feature an integrated anti-skid surface and elevated ridges for improved cargo holding. Predetermined “cutouts” were also added for use with the exclusive Can-Am LinQ quick-attach accessory system, which is adaptable and customizable for various uses and products. The racks have a combined rack capacity of 300 pounds (100 front/200 rear).
Water-resistant rear storage box
A huge 5.7-gallon rear storage box offers exceptional cargo capacity and is located beneath the rear cargo rack. The more-convenient location means riders can access the water-resistant, sealed storage box even when the rear cargo rack is loaded.
New Radio Frequency (RF) Digitally Encoded Security System (D.E.S.S.)
The new RF D.E.S.S. has been improved and redesigned on all Outlander ATVs. Each ATV includes both a performance key and regular key. This revised setup also aligns with this current proven technology in other BRP brands. Can-Am is the only manufacturer to offer a factory-installed anti-theft device as standard equipment.
Color Available
The Outlander 650 base ATV comes in Viper Red.
Can-Am Outlander 570/450
The Can-Am Outlander 570 and Outlander 450 ATVs are also available in a budget-friendly package that is outfitted with many of industry-leading performance pillars but lacks some innovative engineering features found on the DPS and XT packages. The base Outlander 570 and Outlander 450 vehicles differ from the Outlander 650 in that they have steel racks, reduced onboard storage and do not include D.E.S.S. Select from either a 38-horsepower single-cylinder, liquid-cooled Rotax 450 4-stroke or a 48-hp, 8-valve, liquid-cooled Rotax 570 V-Twin.
Visco-Lok auto-locking front differential
The Visco-Lok front differential system progressively transfers power from a slipping front wheel to the gripping one – automatically with no buttons to push or levers to pull.
12-inch steel wheels/25-inch tires
Wrapped in 25-inch Carlisle Trail Wolf Tires, the 12-inch steel wheels on the Outlander vehicles provide rugged performance in tough terrain and changing conditions. A bigger tire design helps you easily overcome obstacles as you ride.
Steel racks with LinQ quick-attach accessory system
The Outlander models have front and rear steel racks. Due to its slightly shorter stance and steel racks, the Outlander vehicles offer the rider improved sight lines while driving without a front loaded rack. The integrated LinQ quick-attach accessory system offers convenient and adaptable cargo hauling capabilities and works with numerous Can-Am rack accessories.
360-lb. combined rack capacity
The Outlander ATVs are made to work, with 360-pound combined rack capacity. They can tote up to 120 pounds up front and another 240 pounds on the rear rack.
1,300-lb. towing capacity
2.9-gallon water-resistant rear storage compartment
A convenient, 2.9-gallon water-resistant rear storage compartment, located on the rear rack, is standard.
400W Magneto
This package provides a 400W magneto, enough to power accessories like extra lights or heated grips.
Multi-function digital gauge
Our easy-to-read multi-function gauge is equipped with a digital information center, including a speedometer, tachometer, odometer, trip meter, gear position, hour meter, engine hour meter, temperature and engine lights, fuel gauge and clock.
70W lighting
Equipped with dual 35W front headlights, with selectable high and low beams, for superb visual clarity.
Available Colors
Choose between Green and Viper Red for the standard (non DPS) models.
