Every jobsite needs a reliable and versatile vehicle that will work hard. The 4WD Mule 4010 4x4 models, as well as the rear-wheel drive Mule 4000 are durable, dependable and capable vehicles.
With up to 800 pounds of cargo capacity, these Mule side-by-sides have the strength to haul the load while also carrying two passengers. The Trans Cab seating system on the rugged Mule 4010 Trans4x4 model makes it possible to haul more cargo or more people as it converts from a 4-seat to 2-seat configuration.
You can change the configuration quickly since converting from one row of seating to two rows does not require using tools or removing parts. There is a wide variety of Kawasaki Genuine Accessories available for the Mule 4010 and Mule 4000 models including both a hard and soft cab, winches, windshields and skid plates. Assembled in Lincoln, NE, from domestic and imported parts, the Mule Trans 4010 4X4, Mule 4010 4x4 and the Mule 4000 RWD side-by-sides are built Kawasaki Strong to help you accomplish any task.

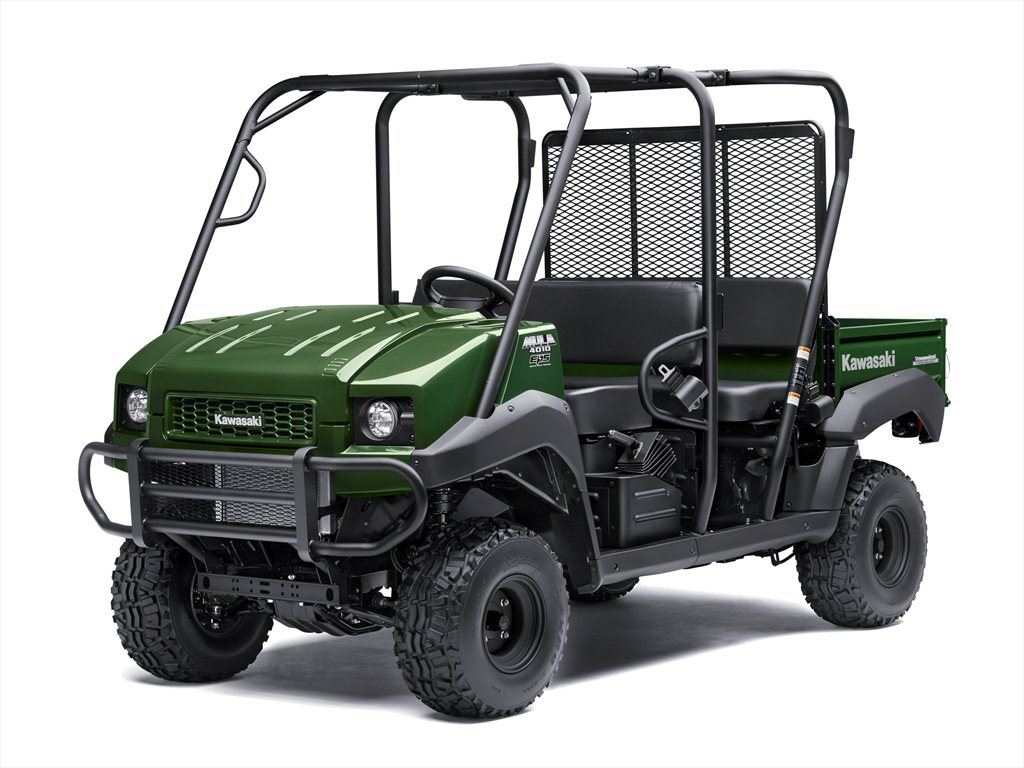

Mule 4010 Trans 4X4
Mule 4010 Trans 4x4
The 2017 Kawasaki Mule 4010 Trans 4x4 side-by-side was born with an unstoppable work ethic, an industrial design and an ability to have fun. It is driven by a powerful 617cc V-twin engine that is liquid-cooled and metered by a DFI system featuring digital fuel injection technology that helps the Mule start easier and run smoother. With a locking rear differential and 4WD, the Mule 4010 Trans 4X4 can get you where you need to go.
Its versatile Trans Cab seating system means it can carry two people and have a large loading area in the cargo bed, capable of carrying up to 800 lbs. Yet when the job demands more people, the seating area can be transformed quickly into the 4-passenger mode, gaining a bench seat behind the driver and shortening the rugged steel cargo bed, which can still carry up to 400 lbs.
The Trans Cab system requires no tools and no parts are removed. The operation simply requires latches to be released on the rear divider panel, which is then secured in the rear mounting position. The left and right bed extensions are then folded to the rear of the bed before the seat is raised and latched into place. It’s a simple operation that can be quickly executed by one or two people. It means the Mule 4010 Trans 4x4 side-by-side can go from work to play or transporter to hauler in no time, and still retain its 1,200-lb towing capacity at all times.
Additional features include a ROPS (Roll Over Protection System) structure, independent front suspension and a durable De Dion rear suspension system allowing the vehicle to be more durable and support large payloads, as well as Electric Power Steering (EPS), which reduces steering effort at low speeds and also reduces bump steer on rough surfaces. All Mule 4000 and Mule 4010 series models are fitted with sealed drum brakes at each corner to provide ample braking power and to help prevent dirt getting into the system.
The Mule 4010 Trans 4x4 side-by-side is available in a number of colors, including Timberline Green and Dark Royal Red. A popular option among owners who also use their Mule for hunting or fishing is the Realtree Xtra Green Camo finish, which allows the vehicle to blend into its surroundings and adds scratch resistance.

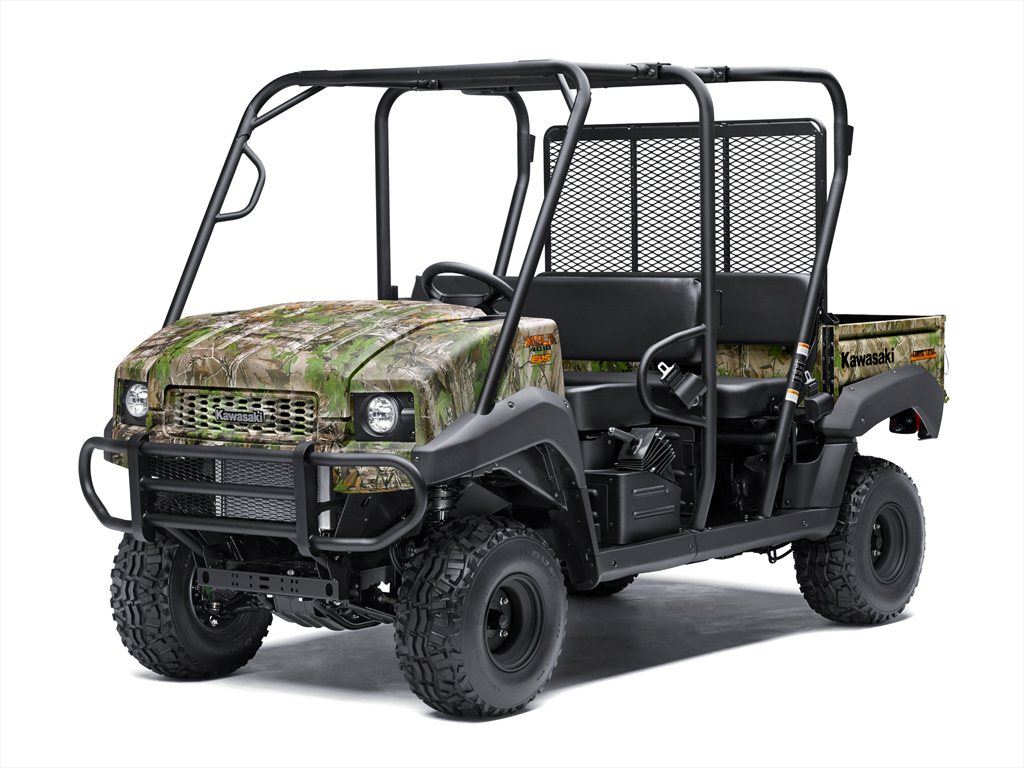

Mule 4010 Trans 4x4 Camo
Additionally, there is a 2017 Kawasaki Mule 4010 Trans 4x4 SE model. This Special Edition is available in Super Black and is equipped with LED headlights plus a composite sun top.

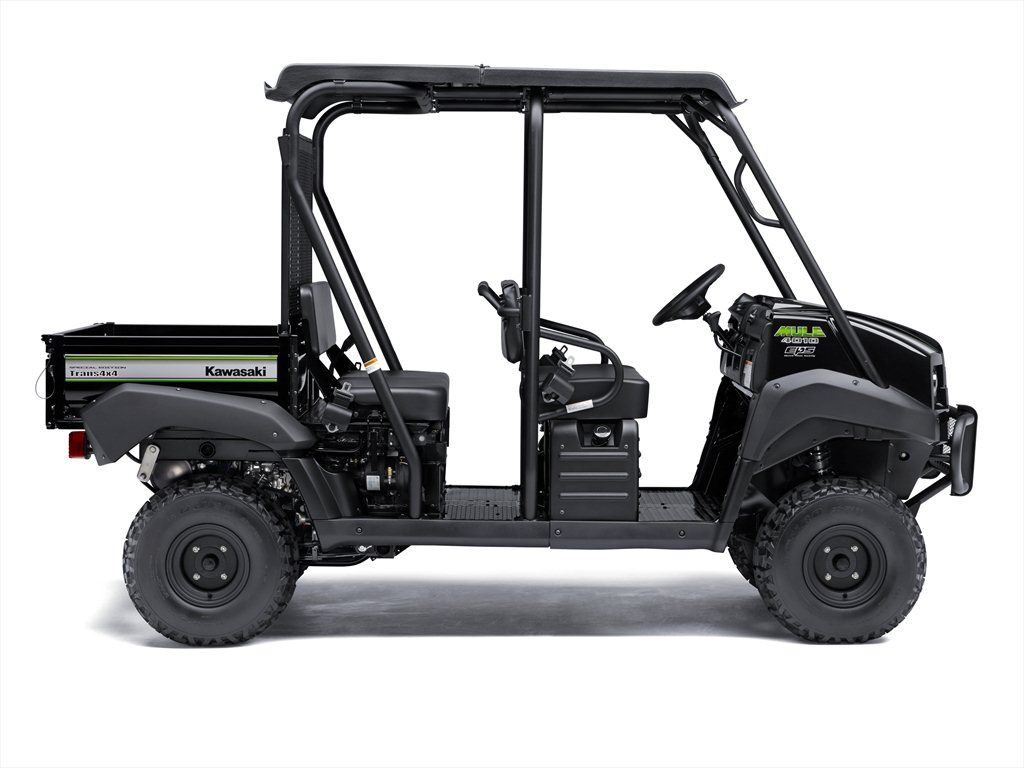

Mule 4010 Trans 4x4 SE
Color:
Mule 4010 Trans 4x4: Timberline Green, Dark Royal Red
Mule 4010 Trans 4x4 Camo: Realtree Xtra Green
Mule 4010 Trans 4x4 SE: Super Black
MSRP:
Mule 4010 Trans 4x4: $11,199
Mule 4010 Trans 4x4 Camo: $11,699
Mule 4010 Trans 4x4 SE: $11,999
Availability: Now
Mule 4010 4x4, Mule 4010 4x4 SE

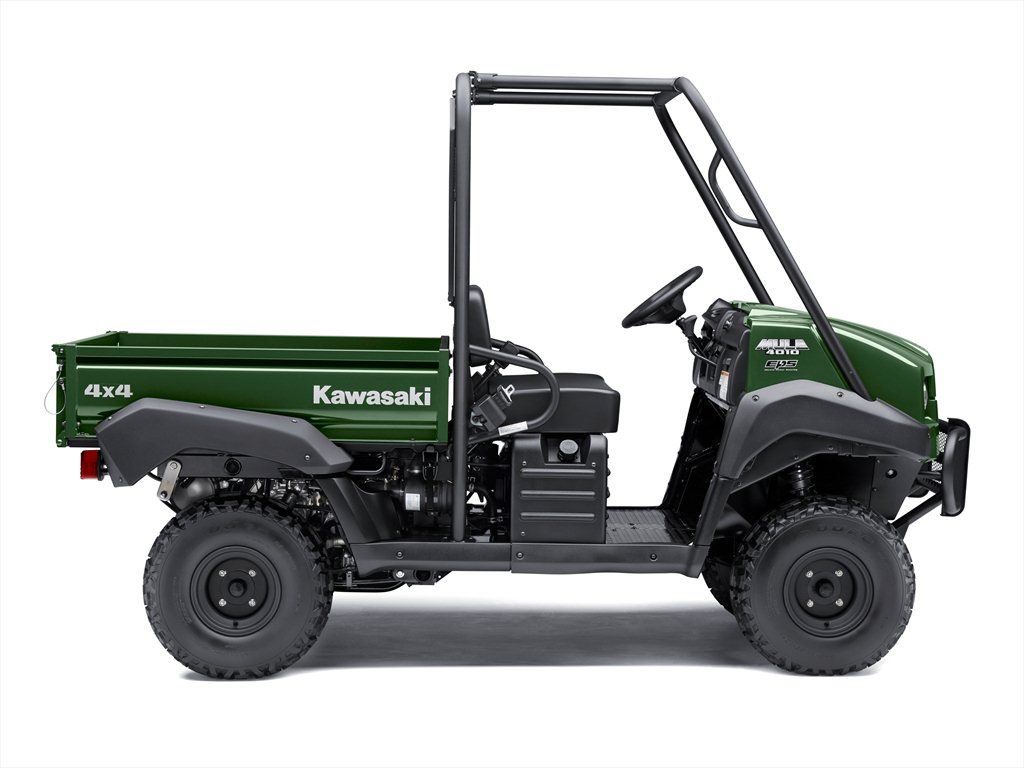

Mule 4010 4x4
Closely related to the Mule 4010 Trans 4x4 model, the 2017 Kawasaki Mule 4010 4x4 side-by-side shares many of the same attributes, with the exception of the Trans Cab seating features. This allows the vehicle to be shorter and offers more cargo bed volume when hauling cargo is your priority. They also share the same 800-lb cargo bed capacity when in the 2-passenger configuration and a 1,200-lb towing capacity, making them valued assets on the work site.
Thanks to Kawasaki’s heritage of heavy machinery, ships and aircraft, all Mule products are built with the same ethos for toughness, durability and endurance. The Mule 4010 4x4 side-by-side will be with you at the start of the work day, and will remain by your side as you wind down the day by the lake to enjoy some fishing.
It’s powered by an efficient fuel-injected 617cc 4-stroke, liquid-cooled V-twin engine that is coupled with a Continuously Variable Transmission (CVT) to help ensure the driver can haul or tow the tough loads.
The 4x4 system is selectable, so it can be run in rear-wheel drive when the going is easy, and switch to 4-wheel drive as required. The transmission also has high and low range to provide pulling power or top speed when necessary, plus a locking rear differential for when the conditions get really tough.
To make routine maintenance easy for the operator, all Mule 4000 and Mule 4010 series models have the oil dipstick and filler under the seat, and the cyclone-type air cleaner has a meter to indicate when it needs to be replaced.
The Mule 4010 4x4 side-by-side comes with a steel bumper to help protect the front end and a large number of Genuine Kawasaki Accessories available to extend the capabilities of the Mule including an optional winch that can be easily mounted to the sturdy chassis.
The 2017 Kawasaki Mule 4010 4x4 SE is available in a Super Black finish and with distinctive Special Edition graphics. It is also equipped with a hard sun top, powerful LED headlights and automotive-style retractable seatbelts for both front occupants.

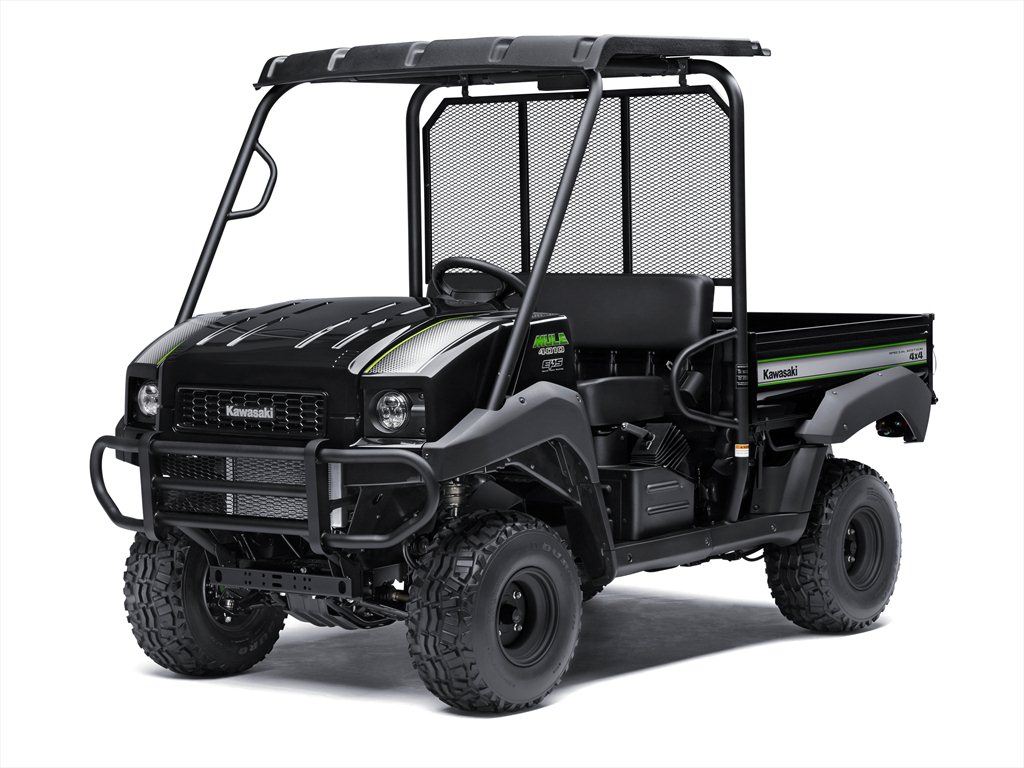

Mule 4010 4x4 SE
Color:
Mule 4010 4x4: Timberline Green, Dark Royal Red
Mule 4010 4x4 SE: Super Black
MSRP:
Mule 4010 4x4: $10,199
Mule 4010 4x4 SE: $10,549
Availability: Now

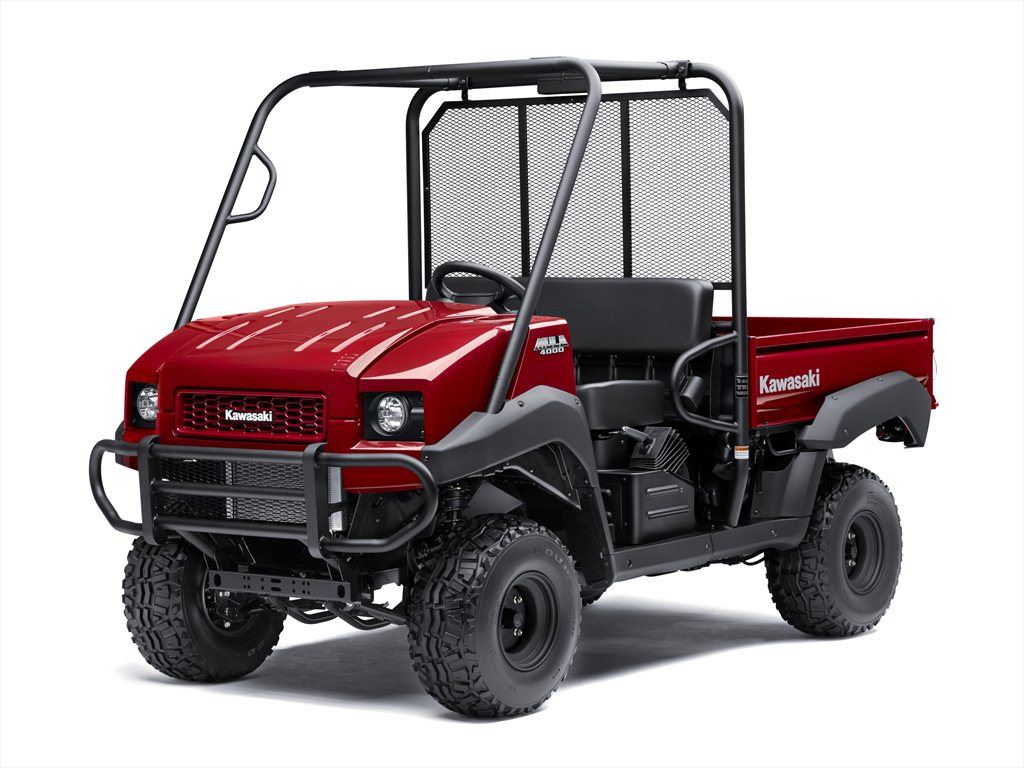

Mule 4000
Mule 4000
The 2017 Kawasaki Mule 4000 side-by-side offers the same Kawasaki strength and build quality as all of the Mule models in the lineup. With all of the features of the Mule 4010 models, including cargo and towing capacity, the MULE 4000 is a very capable side-by-side for the driver who doesn’t need 4WD.
A dual-mode locking rear differential and CVT to apply precise amounts of power to the ground, large off-road tires and independent front suspension give the Mule what it needs to get the job done.
This rear-wheel-drive model utilizes the same large steel cargo bed as the 4010 models, the same DFI 617cc V-twin motor with digital fuel injection technology and the same carrying and towing capacity, all at a lower price. It also maintains the remarkable Kawasaki Strong 3-year limited factory warranty.
Color:
Timberline Green, Dark Royal Red
MSRP:
$8,999
Availability: Now
|
Specificatons:
Mule 4010 Trans 4X4
|
|
|
Engine
|
4-stroke, 2-cylinder, OHV, 90° V Liquid-cooled
|
|
Displacement
|
617cc
|
|
Bore x Stroke
|
76.0x68.0mm
|
|
Compression Ratio
|
10.3:1
|
|
Maximum Torque
|
34.7 lb-ft @ 2500 rpm
|
|
Fuel System
|
DFI w/ 34mm Mikuni throttle body
|
|
Ignition
|
Digital electronic
|
|
Transmission
|
Continuously Variable Transmission (CVT) with high and low range, forward, neutral and reverse, 2WD/4WD
|
|
Final Drive
|
Shaft, selectable 4-wheel drive with dual-mode rear differential
|
|
Alternator Output (max)
|
23 amp
|
|
Front Suspension/Wheel Travel
|
Independent, MacPherson strut/3.9 in
|
|
Rear Suspension/Wheel Travel
|
Semi-independent, De Dion axle with leaf springs and shocks/2.8 in
|
|
Front Tires
|
23x11-10 tubeless
|
|
Rear Tires
|
23x11-10 tubeless
|
|
Steering
|
Electric power assisted rack-and-pinion
|
|
Front Brakes
|
4-wheel hydraulic drums, sealed
|
|
Rear Brakes
|
4-wheel hydraulic drums, sealed
|
|
Ground Clearance
|
7.1 in
|
|
Fuel Capacity
|
6.3 gal
|
|
Turning Radius
|
12.8 ft
|
|
Roll Over Protective Structure (ROPS)
|
Structure meets ROPS requirements for wheeled tractors under SAE J1194, 7.1.1, 7.1.2, and 7.5 and meets the FMVSS 216 Roof Crush resistance requirement
|
|
Cargo Bed Dimensions (LxWxH)
|
50.4/30.3x47.6x11.2 in
|
|
Cargo Bed Capacity
|
400 lb/800 lb (4/2-pass mode)
|
|
Load Capacity
|
1330 lb
|
|
Seating Capacity
|
4 (2 front/2 rear)
|
|
Towing Capacity
|
1200 lb
|
|
Lighting
|
(2) 35 W sealed-beam headlights, (2) 5/21 W tail/brake lights
|
|
Frame Type
|
Steel tube ladder type
|
|
Overall Length
|
128.5 in
|
|
Overall Width
|
58.5 in
|
|
Overall Height
|
75.8 in
|
|
Curb Weight*
|
1586.9 lb
|
|
Wheelbase
|
85.2 in
|
|
Instruments
|
Parking brake warning light, coolant temperature warning light, horn, 12V DC outlet
|
|
Color Choices
|
Timberline Green, Dark Royal Red
|
|
Warranty
|
Kawasaki Strong 3-Year Limited Warranty
|
|
Kawasaki Protection Plus™ (optional)
|
12, 24 or 36 months
|
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
|
Mule 4010 Trans 4X4 Camo
|
|
|
Engine
|
4-stroke, 2-cylinder, OHV, 90° V Liquid-cooled
|
|
Displacement
|
617cc
|
|
Bore x Stroke
|
76.0 x 68.0mm
|
|
Compression Ratio
|
10.3:1
|
|
Maximum Torque
|
34.7 lb-ft @ 2500 rpm
|
|
Fuel System
|
DFI® w/ 34mm Mikuni throttle body
|
|
Ignition
|
Digital electronic
|
|
Transmission
|
Continuously Variable Transmission (CVT) with high and low range, forward, and reverse, 2WD/4WD
|
|
Final Drive
|
Shaft, selectable 4-wheel drive with dual-model differential
|
|
Alternator Output (max)
|
23 amp
|
|
Front Suspension/Wheel Travel
|
Independent, MacPherson strut/3.9 in
|
|
Rear Suspension/Wheel Travel
|
Semi-independent, De Dion axle with leaf springs and shocks/2.8 in
|
|
Front Tires
|
23x11-10 tubeless
|
|
Rear Tires
|
23x11-10 tubeless
|
|
Steering
|
Electric power assisted rack-and-pinion
|
|
Front Brakes
|
4-wheel hydraulic drums, sealed
|
|
Rear Brakes
|
4-wheel hydraulic drums, sealed
|
|
Ground Clearance
|
7.1 in
|
|
Fuel Capacity
|
6.3 gal
|
|
Turning Radius
|
12.8 ft
|
|
Roll Over Protective Structure (ROPS)
|
Structure meets ROPS requirements for wheeled tractors under SAE J1194, 7.1.1, 7.1.2, and 7.5 and meets the FMVSS 216 Roof Crush resistance requirement
|
|
Cargo Bed Dimensions (LxWxH)
|
50.4/30.3 x 47.6 x 11.2 in
|
|
Cargo Bed Capacity
|
400 lb/800 lb (4/2-pass mode)
|
|
Load Capacity
|
1330 lb
|
|
Seating Capacity
|
4 (2 front/2 rear)
|
|
Towing Capacity
|
1200 lb
|
|
Lighting
|
(2) 35 W sealed-beam headlights, (2) 5/21 W tail/brake lights
|
|
Frame Type
|
Steel tube ladder type
|
|
Overall Length
|
128.5 in
|
|
Overall Width
|
58.5 in
|
|
Overall Height
|
75.8 in
|
|
Curb Weight*
|
1586.9 lb
|
|
Wheelbase
|
85.2 in
|
|
Instruments
|
Parking brake warning light, coolant temperature warning light, horn, 12V DC outlet
|
|
Color Choices
|
Realtree Xtra® Green Camo
|
|
Warranty
|
Kawasaki Strong 3-Year Limited Warranty
|
|
Kawasaki Protection Plus (optional)
|
12, 24 or 36 months
|
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
|
Mule 4010 Trans 4X4 SE
|
|
|
Engine
|
4-stroke, 2-cylinder, OHV, 90° V Liquid-cooled
|
|
Displacement
|
617cc
|
|
Bore x Stroke
|
76.0 x 68.0mm
|
|
Compression Ratio
|
10.3:1
|
|
Maximum Torque
|
34.7 lb-ft @ 2500 rpm
|
|
Fuel System
|
DFI® w/ 34mm Mikuni throttle body
|
|
Ignition
|
Digital electronic
|
|
Transmission
|
Continuously Variable Transmission (CVT) with high and low range, forward, and reverse, 2WD/4WD
|
|
Final Drive
|
Shaft, selectable 4-wheel drive with dual-model differential
|
|
Alternator Output (max)
|
23 amp
|
|
Front Suspension/Wheel Travel
|
Independent, MacPherson strut/3.9 in
|
|
Rear Suspension/Wheel Travel
|
Semi-independent, De Dion axle with leaf springs and shocks/2.8 in
|
|
Front Tires
|
23x11-10 tubeless
|
|
Rear Tires
|
23x11-10 tubeless
|
|
Steering
|
Electric power assisted rack-and-pinion
|
|
Front Brakes
|
4-wheel hydraulic drums, sealed
|
|
Rear Brakes
|
4-wheel hydraulic drums, sealed
|
|
Ground Clearance
|
7.1 in
|
|
Fuel Capacity
|
6.3 gal
|
|
Turning Radius
|
12.8 ft
|
|
Roll Over Protective Structure (ROPS)
|
Structure meets ROPS requirements for wheeled tractors under SAE J1194, 7.1.1, 7.1.2, and 7.5 and meets the FMVSS 216 Roof Crush resistance requirement
|
|
Cargo Bed Dimensions (LxWxH)
|
50.4/30.3 x 47.6 x 11.2 in
|
|
Cargo Bed Capacity
|
400 lb/800 lb (4/2-pass mode)
|
|
Load Capacity
|
1330 lb
|
|
Seating Capacity
|
4 (2 front/2 rear)
|
|
Towing Capacity
|
1200 lb
|
|
Lighting
|
(2) 35 W sealed-beam headlights, (2) LED auxiliary lights, (2) 5/21 W tail/brake lights
|
|
Frame Type
|
Steel tube ladder type
|
|
Overall Length
|
128.5 in
|
|
Overall Width
|
58.5 in
|
|
Overall Height
|
78.1 in
|
|
Curb Weight*
|
1619.9 lb
|
|
Wheelbase
|
85.2 in
|
|
Instruments
|
Parking brake warning light, coolant temperature warning light, horn, 12V DC outlet
|
|
Color Choices
|
Super Black
|
|
Warranty
|
Kawasaki Strong 3-Year Limited Warranty
|
|
Kawasaki Protection Plus (optional)
|
12, 24 or 36 months
|
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
|
Mule 4010 4X4
|
|
|
Engine
|
4-stroke, 2-cylinder, OHV, 90° V Liquid-cooled
|
|
Displacement
|
617cc
|
|
Bore x Stroke
|
76.0 x 68.0mm
|
|
Compression Ratio
|
10.3:1
|
|
Maximum Torque
|
34.7 lb-ft @ 2500 rpm
|
|
Fuel System
|
DFI w/ 34mm Mikuni throttle body
|
|
Ignition
|
Digital electronic
|
|
Transmission
|
Continuously Variable Transmission (CVT) with high and low range, forward, and reverse, 2WD/4WD
|
|
Final Drive
|
Shaft, selectable 4-wheel drive with dual-model differential
|
|
Alternator Output (max)
|
23 amp
|
|
Front Suspension/Wheel Travel
|
Independent, MacPherson strut/3.9 in
|
|
Rear Suspension/Wheel Travel
|
Semi-independent, De Dion axle with leaf springs and shocks/2.8 in
|
|
Front Tires
|
23x11-10 tubeless
|
|
Rear Tires
|
23x11-10 tubeless
|
|
Steering
|
Electric power assisted rack-and-pinion
|
|
Front Brakes
|
4-wheel hydraulic drums, sealed
|
|
Rear Brakes
|
4-wheel hydraulic drums, sealed
|
|
Ground Clearance
|
6.9 in
|
|
Fuel Capacity
|
6.3 gal
|
|
Turning Radius
|
11.2 ft
|
|
Roll Over Protective Structure (ROPS)
|
Structure meets ROPS requirements for wheeled tractors under SAE J1194, 7.1.1, 7.1.2, and 7.5 and meets the FMVSS 216 Roof Crush resistance requirement
|
|
Cargo Bed Dimensions (LxWxH)
|
46.3 x 51.6 x 11.4 in
|
|
Cargo Bed Capacity
|
800 lb
|
|
Load Capacity
|
1330 lb
|
|
Seating Capacity
|
2
|
|
Towing Capacity
|
1200 lb
|
|
Lighting
|
(2) 35 W sealed-beam headlights, (2) 5/21 W tail/brake lights
|
|
Frame Type
|
Steel tube ladder type
|
|
Overall Length
|
116.7 in
|
|
Overall Width
|
62.0 in
|
|
Overall Height
|
75.8 in
|
|
Curb Weight*
|
1432.6 lb
|
|
Wheelbase
|
73.6 in
|
|
Instruments
|
Parking brake warning light, coolant temperature warning light, horn, 12V DC outlet
|
|
Color Choices
|
Timberline Green, Dark Royal Red
|
|
Warranty
|
Kawasaki Strong 3-Year Limited Warranty
|
|
Kawasaki Protection Plus (optional)
|
12, 24 or 36 months
|
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
|
Mule 4010 4X4 SE
|
|
|
|
Engine
|
4-stroke, 2-cylinder, OHV, 90° V Liquid-cooled
|
|
Displacement
|
617cc
|
|
Bore x Stroke
|
76.0 x 68.0mm
|
|
Compression Ratio
|
10.3:1
|
|
Maximum Torque
|
34.7 lb-ft @ 2500 rpm
|
|
Fuel System
|
DFI w/ 34mm Mikuni throttle body
|
|
Ignition
|
Digital electronic
|
|
Transmission
|
Continuously Variable Transmission (CVT) with high and low range, forward, and reverse, 2WD/4WD
|
|
Final Drive
|
Shaft, selectable 4-wheel drive with dual-model differential
|
|
Alternator Output (max)
|
23 amp
|
|
Front Suspension/Wheel Travel
|
Independent, MacPherson strut/3.9 in
|
|
Rear Suspension/Wheel Travel
|
Semi-independent, De Dion axle with leaf springs and shocks/2.8 in
|
|
Front Tires
|
23x11-10 tubeless
|
|
Rear Tires
|
23x11-10 tubeless
|
|
Steering
|
Electric power assisted rack-and-pinion
|
|
Front Brakes
|
4-wheel hydraulic drums, sealed
|
|
Rear Brakes
|
4-wheel hydraulic drums, sealed
|
|
Ground Clearance
|
6.9 in
|
|
Fuel Capacity
|
6.3 gal
|
|
Turning Radius
|
11.2 ft
|
|
Roll Over Protective Structure (ROPS)
|
Structure meets ROPS requirements for wheeled tractors under SAE J1194, 7.1.1, 7.1.2, and 7.5 and meets the FMVSS 216 Roof Crush resistance requirement
|
|
Cargo Bed Dimensions (LxWxH)
|
46.3 x 51.6 x 11.4 in
|
|
Cargo Bed Capacity
|
800 lb
|
|
Load Capacity
|
1330 lb
|
|
Seating Capacity
|
2
|
|
Towing Capacity
|
1200 lb
|
|
Lighting
|
(2) 35 W sealed-beam headlights, (2) LED auxiliary lights, (2) 5/21 W tail/brake lights
|
|
Frame Type
|
Steel tube ladder type
|
|
Overall Length
|
116.7 in
|
|
Overall Width
|
62.0 in
|
|
Overall Height
|
78.1 in
|
|
Curb Weight*
|
1445.8 lb
|
|
Wheelbase
|
73.6 in
|
|
Instruments
|
Parking brake warning light, coolant temperature warning light, horn, 12V DC outlet
|
|
Color Choices
|
Super Black
|
|
Warranty
|
Kawasaki Strong 3-Year Limited Warranty
|
|
Kawasaki Protection Plus (optional)
|
12, 24 or 36 months
|
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
|
Mule 4000
|
|
|
|
Engine
|
4-stroke, 2-cylinder, OHV Valve 90° V Liquid-cooled
|
|
Displacement
|
617cc
|
|
Bore x Stroke
|
76.0 x 68.0mm
|
|
Compression Ratio
|
10.3:1
|
|
Maximum Torque
|
34.7 lb-ft @ 2500 rpm
|
|
Fuel System
|
DFI® w/ 34mm Mikuni throttle body
|
|
Ignition
|
Digital electronic
|
|
Transmission
|
Continuously Variable Transmission (CVT) with forward and reverse
|
|
Final Drive
|
Shaft, dual-mode rear differential
dual-model differential
|
|
Alternator Output (max)
|
23 amp
|
|
Front Suspension/Wheel Travel
|
Independent, MacPherson strut/3.9 in
|
|
Rear Suspension/Wheel Travel
|
Semi-independent, De Dion axle with leaf springs and shocks/2.8 in
|
|
Front Tires
|
23x11-10 tubeless
|
|
Rear Tires
|
23x11-10 tubeless
|
|
Steering
|
Rack-and-pinion
|
|
Front Brakes
|
4-wheel hydraulic drums, sealed
|
|
Rear Brakes
|
4-wheel hydraulic drums, sealed
|
|
Ground Clearance
|
7.5 in
|
|
Fuel Capacity
|
6.3 gal
|
|
Turning Radius
|
11.0 ft
|
|
Roll Over Protective Structure (ROPS)
|
Structure meets ROPS requirements for wheeled tractors under SAE J1194, 7.1.1, 7.1.2, and 7.5 and meets the FMVSS 216 Roof Crush resistance requirement
|
|
Cargo Bed Dimensions (LxWxH)
|
46.3 x 51.6 x 11.4 in
|
|
Cargo Bed Capacity
|
800 lb
|
|
Load Capacity
|
1330 lb
|
|
Seating Capacity
|
2
|
|
Towing Capacity
|
1200 lb
|
|
Lighting
|
(2) 35 W sealed-beam headlights, (2) 5/21 W tail/brake lights
|
|
Frame Type
|
Steel tube ladder type
|
|
Overall Length
|
116.7 in
|
|
Overall Width
|
62.0 in
|
|
Overall Height
|
75.8 in
|
|
Curb Weight*
|
1338.4 lb
|
|
Wheelbase
|
73.6 in
|
|
Instruments
|
Parking brake and coolant temp warning lights, horn, 12V DC outlet
|
|
Color Choices
|
Timberline Green, Dark Royal Red
|
|
Warranty
|
Kawasaki Strong 3-Year Limited Warranty
|
|
Kawasaki Protection Plus (optional)
|
12, 24 or 36 months
|
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
