In 1983, Suzuki introduced the world's first 4-wheel ATV.
Today, Suzuki ATVs are everywhere. From the most remote areas to the most everyday tasks, you'll find the KingQuad powering a rider onward. Across the board, the KingQuad lineup is an exceptional group of ATVs.

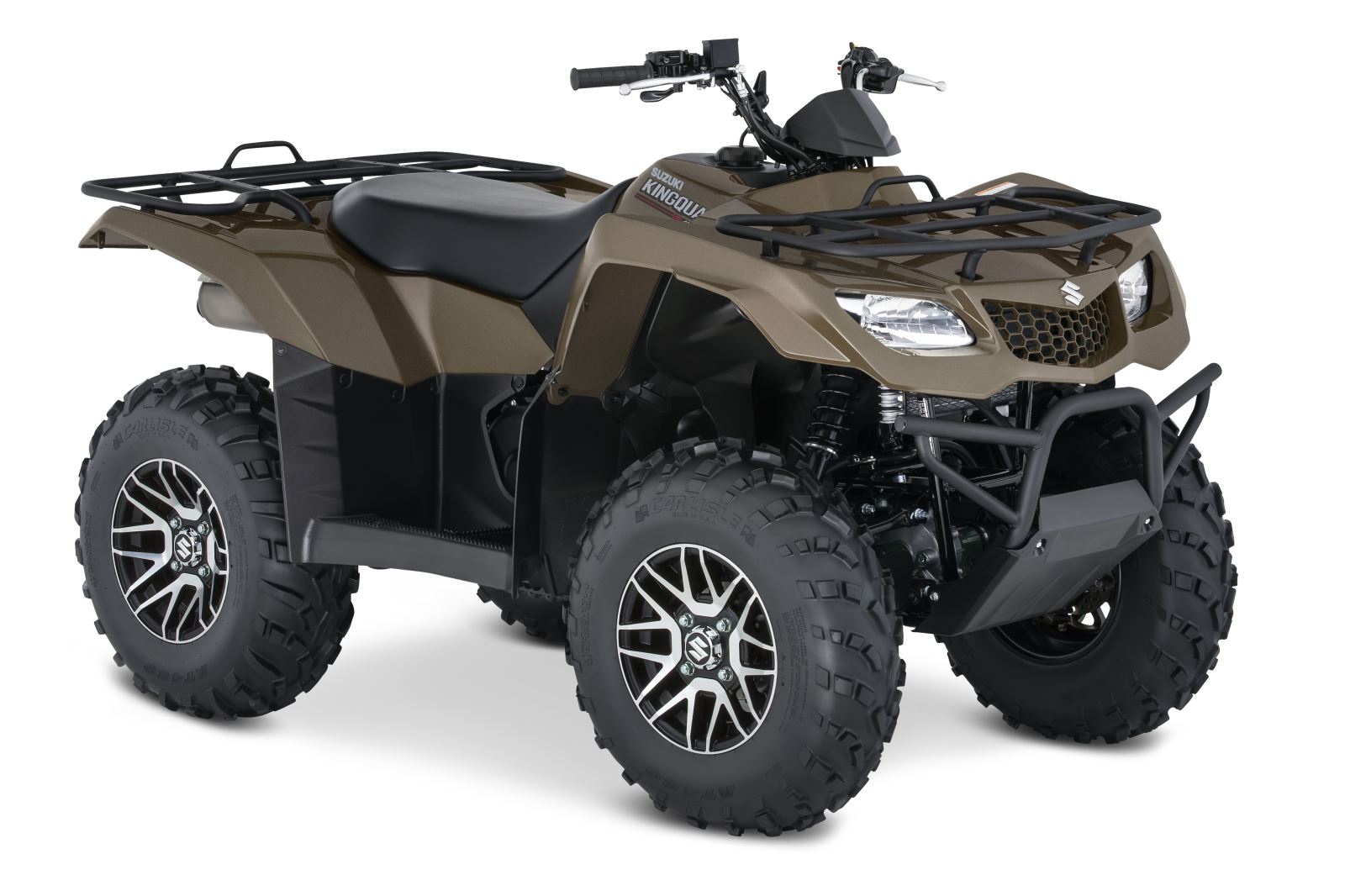

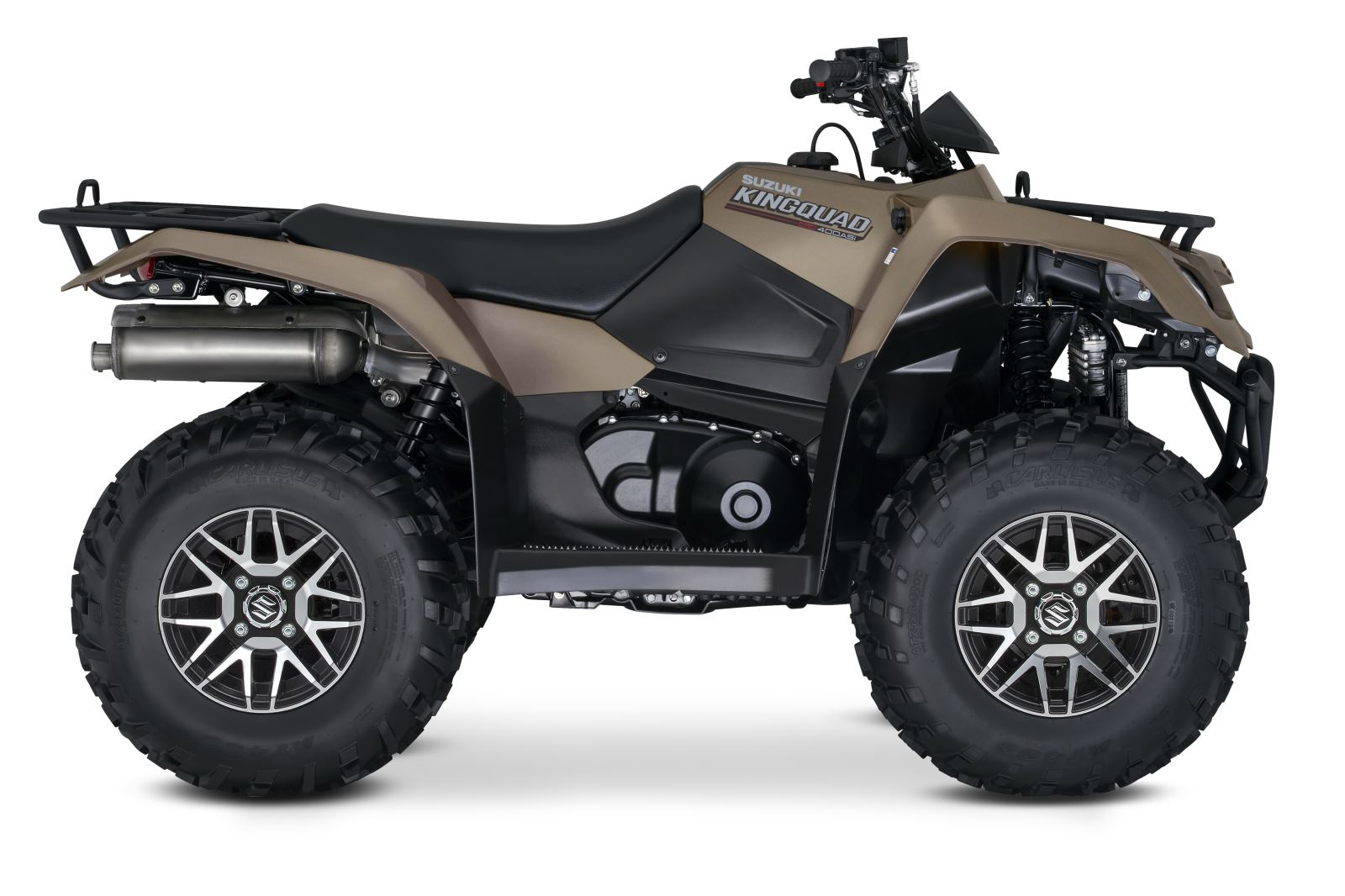

Whether you’re working hard or getting away from it all, the Suzuki KingQuad 400ASi helps you every step of the way. The fully automatic Quadmatic Transmission has 2WD and 4WD modes to handle rough trail conditions while completing even the most demanding chores.
Along with exceptional engine performance across the powerband, its high-performance iridium spark plug and pulsed-secondary air-injection (pair) system help provide outstanding fuel efficiency and clean emissions.
KingQuad 400ASi SE+ Features
Engine
- The KingQuad 400ASi’s fuel-injected, 376cc, four-stroke, four-valve engine produces efficient power and drivability.
- Suzuki's class-leading fuel injection smooths power output, especially in the mid-to-high range, and provides excellent cold starting. The system uses 3-D maps for optimum ignition, creating responsive yet environmentally compliant performance.
- Suzuki Advanced Cooling System (SACS) uses an oil cooler and a thermostat-controlled cooling fan to shed engine heat during hard work or cargo hauling.
- Push-button electric starting has a start-in-gear function allowing starting without shifting to neutral (as conditions permit).
- The Engine Control Unit (ECU) has slip control logic, which adjusts fuel injector duration and timing to improve drivability and grip in loose/slippery conditions.
- Highly efficient iridium spark plug contributes to better combustion, cleaner emissions and longer plug life. Engine starting under low temperature is also improved.
- Pulsed-secondary AIR-injection (PAIR) system and catalyst-equipped exhaust system help the ATV meet emission standards while maintaining a high level of performance (eligible for California red-sticker registration).
Transmission
- The Quadmatic transmission is a fully automatic, CVT (continuously variable transmission) with selectable high/low sub-transmission and reverse for maximum traction and fuel efficiency.
- Automotive gate-type gearshift lever lets you conveniently choose high or low range, neutral, or reverse.
- Select 2WD and 4WD with the flip of a handlebar-mounted lever. The shaft drive system is reliable and durable and is nearly maintenance-free.
- Torque-sensing limited-slip front differential provides maximum traction and light steering when in 4WD mode.
- An advanced engine-braking system minimizes free-wheeling with the throttle off to help control the ATV during steep descents.
- The ECU has a Reverse Mode that monitors vehicle speed so higher engine rpm can be used when getting out of mud or loose soil in reverse mode.
Chassis
- Sporty bodywork features sharply angled, high-clearance fenders finished in a unique, matte bronze color.
- Suzuki's plush T-shaped seat delivers rider mobility during sport or difficult terrain riding. Overall length is less than 82 inches (208 cm), so the KingQuad fits into a 6.5-foot truck bed for easy transportation.
- Independent front A-arm suspension offers smooth performance and remarkable ground clearance with 6.7 inches (170.1 mm) of wheel travel.
- A swingarm rear suspension with 6.7 inches (170.1 mm) of wheel travel and twin shock absorbers provides agile handling and plush riding.
- Dual front hydraulic disc brakes feature calipers with large, 34mm pistons and wide brake-pad surface area for increased stopping power and outstanding durability. Lightweight and strong plastic skid plates are sturdy to withstand trail pounding, yet slippery to let obstacles slide below.
- Large, 25-inch Carlisle tires with aggressive tread offer consistent traction in wet conditions, yet make for a quiet, smooth ride on hard-packed trails.
- New cast aluminum wheels are powdercoated black with machined spoke and rim edges that complement the new bronze bodywork.
Utility/Convenience
- Dual 35-watt headlights (with high and low settings) are part of the distinctive KingQuad grille appearance. Bright taillight helps make the ATV visible in dark conditions.
- Heavy-duty front and rear cargo racks let you take advantage of the ATV’s superb load capabilities. Wrinkle paint finish on the racks and front bumper is durable and scratch resistant.
- LCD instrumentation includes speedometer, odometer, trip meter, hour meter, clock, fuel gauge and indicators for reverse, neutral, oil and FI (fuel injection).
- Automotive-style DC power outlet is included on front fender.
- Winch-ready mounts and wire conduit make winch installation simple.
- Large, 4.2-gallon (16.0 L) fuel tank provides outstanding riding range.
- Full floorboards with integrated raised footpegs provide protection.
- A variety of Genuine Suzuki Accessories are available, including winches, windshield, front and rear bumpers, snowplow, aluminum skid pans, rack extensions, utility box, and more.
- Suzuki 12-month limited warranty.
2020 KingQuad 400ASi SE+ Specs
Engine
Engine 376cc (22.94 cubic in.), 4-stroke, air-cooled with SCAS, OHC single cylinder
Bore x Stroke 82.0 mm x 71.2 mm (3.228 in. x 2.803 in.)
Compression Rati 9.0:1
Fuel System Suzuki electronic fuel injection
Starter Electric
Lubrication Wet sump
Drivetrain
Transmission Automatic variable ratio (V-belt), with high/low range and reverse
Clutch Dry shoe, automatic, centrifugal type
Driven Wheels 2WD and 4WD
Final Drive Shaft drive
Chassis
Suspension, Front Independent, double wishbone, coil spring, oil damped
Suspension, Rear Swingarm type, coil spring, oil damped
Brakes, Front Disc brakes, twin rotors
Brake, Rear Single drum brake
Tire, Front AT25 x 8-12, tubeless type x 2
Tire, Rear AT25 x 10-12, tubeless type x 2
Fuel Tank Capacity 16.0 L (4.2 US gallons)
Electrical
Ignition Electronic ignition (transistorized)
Headlight 12V 35/35W (HS1) x 2
Taillight 12V 21/5W
Dimensions
Overall Length 2060 mm (81.1 inches)
Overall Width 1145 mm (45.1 inches)
Overall Height 1220 mm (48.0 inches)
Wheelbase 1270 mm (50.0 inches)
Ground Clearance 250 mm (9.8 inches)
Seat Height 840 mm (33.1 inches)
Curb Weight 265 kg (628 lbs.)
